Highlight:

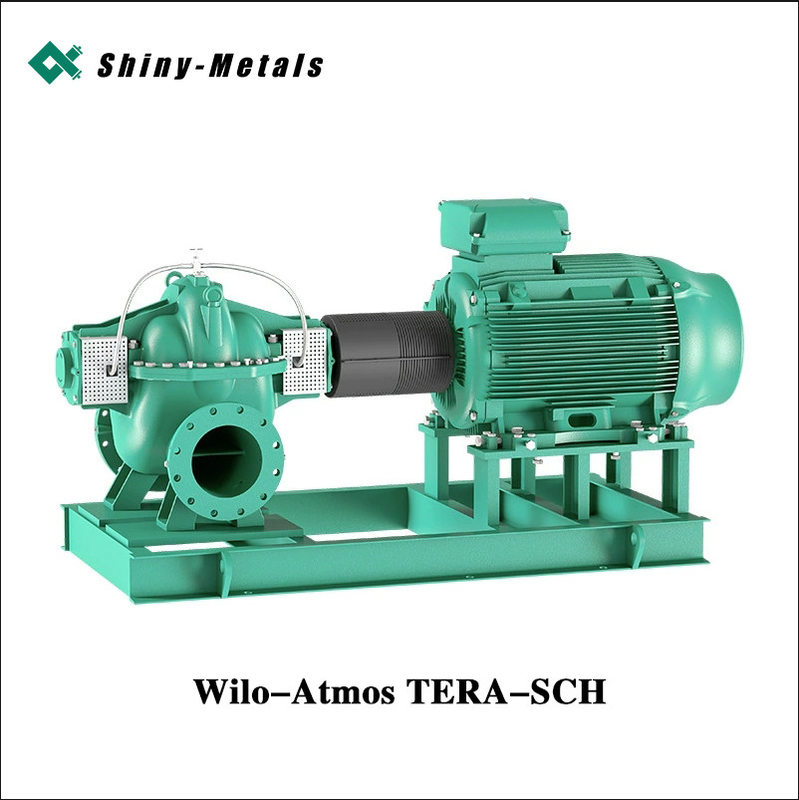

Wilo SCH Double Suction Centrifugal Pump
, Circulating Double Suction Centrifugal Pump
, Circulating centrifugal pump double suction
Inhalation Side Nominal Diameter: |
DN 150 To DN 600 |
Max.Head: |
80-110m |
Export Side Nominal Diameter: |
DN 125 To DN 450 |
Fluid Temperature: |
20 °c To +120 °c |
Max.Capacity: |
2200m³/H |
Mains Connection: |
3~400 V, 50 Hz |
Driving Type: |
Motor |
Impeller Number: |
Single-Stage Pump |
Working Pressure: |
10bar/16bar |
Influent Type Of Impeller: |
Double-Suction Pump |
Position Of Pump Shaft: |
Horizontal Pump |
Pump Casing Combined: |
Horizontal Split Pumps |
Mounting Height: |
Since Irrigation Centrifugal Pumps |
Usage: |
Power Plants, Water Plants, Municipal Facilities |
Horizontal Water Double Suction Centrifugal Pump Large Flow Circulating Wilo SCH
Company Info
Business Type: Trading Company
Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware
Management System Certification: ISO 9001
Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"
Product Description
- Wilo Atmos TERA-SCH is a double suction horizontal split pump that can reliably operate and efficiently transport high flow media, suitable for various water distribution networks.
- Flow range : <2200m³/h
- Lift range : ≤110m
- Max.operating pressure at different fluid temperature : 10bar/16bar
- Temperature range : -20ºC~+120ºC
- Aplication field :The TERA-SCH series double suction horizontal split pump is suitable for raw water extraction, boosting, and general water delivery in power plants, water plants, and municipal drinking water supply networks, industrial water and cooling water supply in power plants and industrial equipment, irrigation in commercial agricultural economy, pumping heating water (according to VDI 2035 in Germany) and water ethylene glycol mixtures
|
 |
Summary
Wilo Atmos TERA-SCH is capable of transmitting high flow media in an energy-efficient and efficient manner, year-round, providing reliable water supply with extremely low operating costs. The easy to maintain design and high efficiency throughout the entire characteristic curve range enable the pump to operate with low wear, energy efficiency, and thus achieve constant water supply.
Your advantages
- Reliable continuous duty for an efficient drinking water supply over extensive piping networks - can be tailored to suit your exact requirements
- Reduced energy costs through high overall efficiency
- Simplified and shorter alignment process thanks to tolerant coupling and motor adjusting device
- Increased operational reliability thanks to quiet-running hydraulics with lower vibrations and reduced noise level
- Reduced cavitation tendency through optimised NPSH-performances
- Lower space requirements due to compact design
- Also available as certified drinking water version
- Optionally with Ceram CT coating - for an efficiency increase of up to 3 %
- Standard volume flow of up to 4500 m³/h
|
Design
Pump with axially split housing mounted on a base frame
Application
> Raw water intake, pressure boosting and general transport in power plants, waterworks and municipal drinking water supply networks
> Cooling water and industrial water supply in power plants and industrial facilities
> Irrigation in professional irrigation/agriculture
> Pumping of heating water (in accordance with VDI 2035 Germany) and water/glycol mixtures
Typekey
| Example: |
Atmos TERA-SCH 250/360-75/4-L1 |
| Atmos |
Product family |
| TERA |
Series |
| SCH |
Construction (splitcase pump, horizontal) |
| 250 |
Nominal diameter DN of pressure port |
| 360 |
Nominal diameter of the impeller in mm |
| 75 |
Rated motor power P2 in kW |
| 4 |
Number of poles |
| L1 |
Variant code (L1 = bronze impeller) |
Technical data
- Fluid temperature -20 °C to +120 °C
- Mains connection 3~400 V, 50 Hz
- Nominal diameters
- on the suction side: DN 150 to DN 600
- on the pressure side: DN 125 to DN 450
- Max. operating pressure: PN 10, PN 16
Materials
- Pump housing: EN-GJL-250
- Impeller: G-CuSn10
- Shaft: X12Cr13
Construction
- Centrifugal pump with axially split housing, available in single-stage design
- Delivered as complete unit (pump with coupling, coupling guard, motor and baseplate) or without motor or only pump hydraulics
- Shaft sealing with mechanical seal or stuffing box packing
- 2-, 4- and 6-pole motors; IE3-standard to 1000 kW (IE4 on request)
- Welded steel frame
Scope of delivery
- Bare shaft pump or with coupling or as complete unit
- Installation and operating instructions
