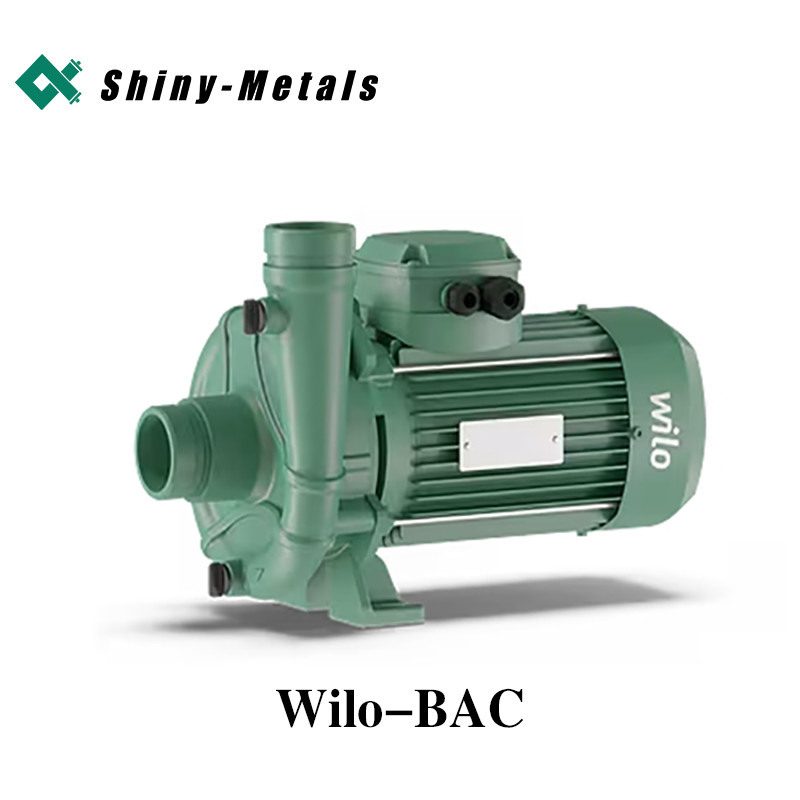

Wilo BAC Low Pressure Centrifugal Glanded Pump For Chillers And Heat Pumps

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: BAC

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Wilo BAC Glanded Pump, Chillers Glanded Pump, Wilo BAC Pump


Features:	Low NPSH, High Efficiency, Easy Maintenance	Head:	Up To 100m
Power:	Up To 110kW	Pressure Range:	Up To 16 Bar
Temperature Range:	-20°C To 140°C	Inlet/Outlet Size:	DN 32 To DN 150
Flow Rate:	Up To 500m3/h	Speed:	Up To 3600rpm

Features:	Low NPSH, High Efficiency, Easy Maintenance
Head:	Up To 100m
Power:	Up To 110kW
Pressure Range:	Up To 16 Bar
Temperature Range:	-20°C To 140°C
Inlet/Outlet Size:	DN 32 To DN 150
Flow Rate:	Up To 500m3/h
Speed:	Up To 3600rpm

Wilo BAC Low Pressure Centrifugal Glanded Pump For Chillers And Heat Pumps

Company Info

Address: Tianjin, China

Business Type: Trading Company

Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware

Management System Certification:ISO 9001

Main Products: Water Pump Set

Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"

Product Description

The Wilo BAC series pump is a single-stage low-pressure centrifugal pump designed specifically for chillers and heat pumps.

Flow range : < 80m³/h

Lift range : ≤ 25m

Permissible temperature range: -15 °C to +60 °C (BAC70)

Permissible temperature range: -15 °C to +90 °C (BAC50)

Mains connection 3~400 V, 50 Hz (others on request)

Aplication field :Wilo BAC is mainly used in chiller and heat pump systems, and can be used to pump cooling and cold water, water ethylene glycol mixtures, and other non abrasive fluids. It plays a key role in various places that require cooling or heating, such as air conditioning systems or heating systems in commercial buildings, industrial plants, residential buildings, etc., ensuring the circulation and heat transfer of fluids in the system.

Wilo BAC Low Pressure Centrifugal Glanded Pump For Chillers And Heat Pumps 1

Wilo BAC Low Pressure Centrifugal Glanded Pump For Chillers And Heat Pumps 2

Wilo BAC Low Pressure Centrifugal Glanded Pump For Chillers And Heat Pumps 4

Design

Glanded pump in monobloc design with Victaulic connection

Application

For pumping cooling and cold water, water-glycol mixtures and other fluids without abrasive substances.

The BAC50 can be used in R290 heat pumps (in accordance with IEC 60335-2-40).

Equipment/function

Single-stage low-pressure centrifugal pump in block design, with axial suction port and radially arranged pressure port

Typekey

Example	BAC 50/122-1.5/2
BAC	Monobloc pump for cooling and air-conditioning applications
50	Pipe connection (pressure port)
122	Impeller diameter
1.5	Rated motor power P2 in kW
2	Number of poles

Technical data

Permissible temperature range: -15 °C to +60 °C (BAC70)
Permissible temperature range: -15 °C to +90 °C (BAC50)
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP55
Victaulic connection: DN 50 (60.3 mm) or DN 65 (76.1 mm)
Max. operating pressure 10 bar (BAC50) or 6.5 bar (BAC70)

Materials

Pump housing: PA 6.6 50 % GF (BAC70)
Pump housing: EN-GJL-250 (BAC50)
Impeller: PA/PPO, fibreglass-reinforced
Shaft: X30Cr13
Mechanical seal: BQEGG

Construction

Single-stage low-pressure centrifugal pump in block design, with axial suction port and radially arranged pressure port.

Scope of delivery

Pump
Installation and operating instructions
