ODM Industrial Heating Glanded Pump Double Impeller Centrifugal Pump Wilo Atmos GIGA NHT

Name: ODM Industrial Heating Glanded Pump Double Impeller Centrifugal Pump Wilo Atmos GIGA NHT
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Atmos GIGA-NHT
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: Atmos GIGA-NHT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Industrial Heating Glanded Pump, ODM Glanded Pump, Wilo double impeller centrifugal pump


Maximum Pressure:	Up To 16 Bar	Inlet/Outlet Size:	DN 32 - DN 150
Flow Rate:	Up To 500 M3/h	Head:	Up To 100 M
Power Range:	Up To 55 KW	Installation Type:	Horizontal

Maximum Pressure:	Up To 16 Bar
Inlet/Outlet Size:	DN 32 - DN 150
Flow Rate:	Up To 500 M3/h
Head:	Up To 100 M
Power Range:	Up To 55 KW
Installation Type:	Horizontal

ODM Industrial Heating Glanded Pump Double Impeller Centrifugal Pump Wilo Atmos GIGA NHT

Wilo Atmos GIGA NHT Single-Stage Pump For District Heating And Industrial Heating

Company Info

Address: Tianjin, China

Business Type: Trading Company

Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware

Management System Certification:ISO 9001

Main Products: Water Pump Set

Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"

Product Description

Wilo Atmos GIGA NHT is a pump designed specifically for district heating and industrial heating applications, complying with the EN 733 size standard.

Flow range : < 600m³/h

Lift range : ≤ 130m

Permissible temperature range:-20 °C … +350 °C (heat carrier oil)

0 … +200 °C (water)

Mains connection: 3~400 V, 50 Hz

Nominal diameter: DN 32 to DN 150

Max. operating pressure :25 bar

Aplication field :Wilo Atmos GIGA NHT is suitable for hot water heating systems, cooling and chilled water circulation systems, district heating circuits up to 200 ° C, industrial water circulation systems up to 200 ° C, and industrial heat transfer oil circulation systems up to 350 ° C. It is widely used in industrial and civil heating fields.

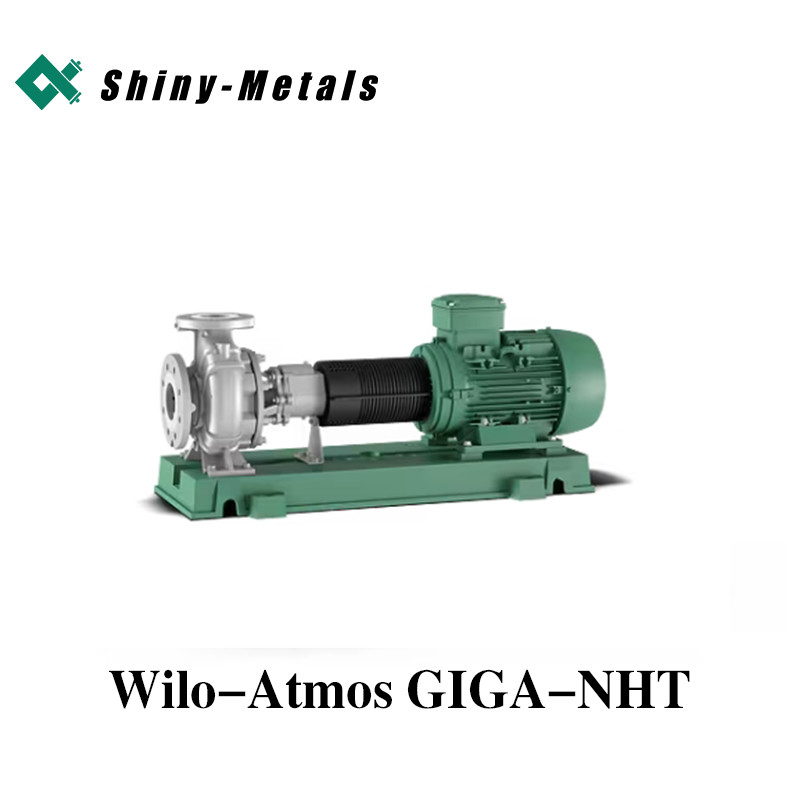

ODM Industrial Heating Glanded Pump Double Impeller Centrifugal Pump Wilo Atmos GIGA NHT 1

Design

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate. Standard version with spacer coupling.

Application

Hot-water heating systems
Cooling and chilled water circulation systems
District heating loops up to 200 °C
Industrial water cycles up to 200 °C
Industrial heat transfer oil circuit systems up to 350 °C

Equipment/function

Single-stage low-pressure centrifugal pump in a norm pump design with coupling, coupling guard, motor and baseplate. The pump is sealed with a mechanical seal.

Typekey

Example:	Atmos GIGA-NHT 40/200-11/2
Atmos	Product family
GIGA	Series designation
NHT	Design
	NHT = standard pump for high-temperature applications
40	DN for the discharge flange
200	Impeller nominal diameter [mm]
11	Rated power P2 [kW]
2	Number of poles

Technical data

Permissible temperature range:
- -20 °C … +350 °C (heat carrier oil)
- 0 … +200 °C (water)
Mains connection 3~400 V, 50 Hz
Protection class IP55
Nominal diameter DN 32 to DN 150
Max. operating pressure 25 bar

Materials

Pump housing and lantern. Standard: EN-GJS-400-15
Impeller: EN-GJL-250
Shaft: 1.4021
Mechanical seal:
- AQ7EGG (water)
- AQ1VGG (heat carrier oil)

Construction

Single-stage low-pressure centrifugal pump as baseplate pump with axial suction ports with flanged bearing brackets and axle fastening for flexibly coupled drives
Spacer coupling (sleeve coupling) is standard; this provides the option of leaving the motor in position when dismantling the rotor unit

Scope of delivery

Pump
Installation and operating instructions
Bare shaft pump or
Pump on baseplate with coupling and coupling guard, without motor or
Completely mounted pump on baseplate with electric motor
