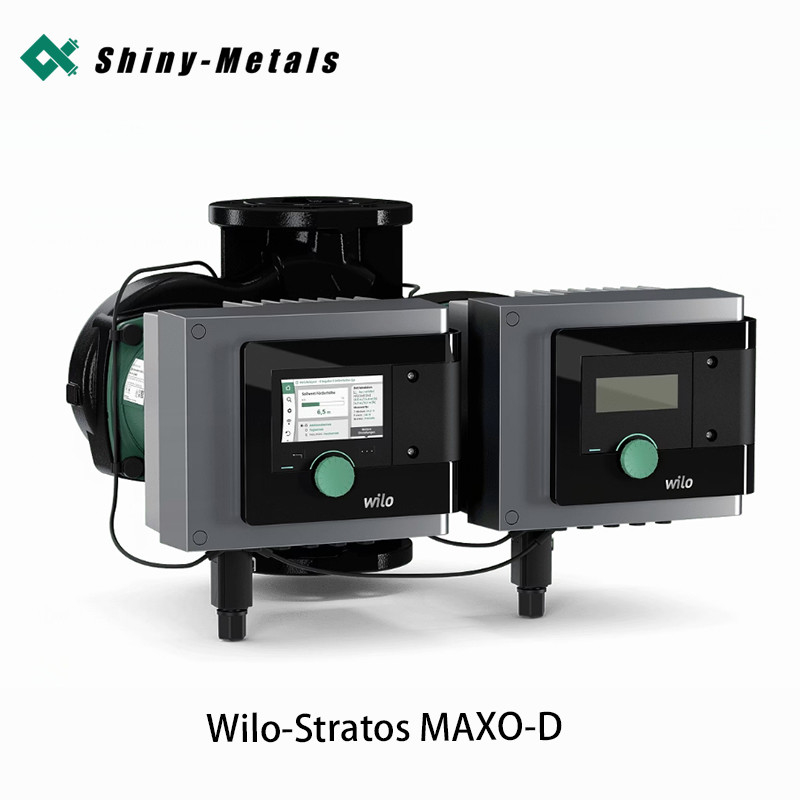

Wilo-Stratos MAXO-D Heating And Air Conditioning Refrigeration Cycle Pump

The Wilo Stratos MAXO - D is an intelligent glandless circulating double pump, featuring advanced technology and design. It is applicable to various heating, air-conditioning, and cooling systems, possessing excellent performance and functions, enabling highly efficient operation and intelligent control. Meanwhile, Wilo provides related services to support its application.

Advantage Features

• Intuitive Operation: The application-guided setup function combined with the new display and button layout makes the operation simple.
• Energy-efficient and High-performance: The optimized combination of energy-saving functions leads to high energy efficiency; the intelligent control functions enhance the system efficiency.
• Advanced Communication: Interfaces such as Bluetooth facilitate the connection with mobile devices and multi-pump control systems, enabling remote operation and monitoring. It can also be connected to the building automation system.
• Easy Installation: The large terminal compartment and the optimized Wilo - Connector make the electrical installation effortless.

Product Features

• Cataphoretic-coated grey cast iron pump housing.
• Pedestals for wall-mounted installation.
• EC motor technology.
• Full graphic display with setting assistant.
• Multiple interfaces for building automation.
• LED control display.
• Bluetooth interface.
• Cable connections and terminals.
• Wilo - Connector.

Environmental Characteristics

• The control modes achieve significant energy savings, and the Multi - Flow Adaptation technology greatly improves the system efficiency.
• The production in European factories is sustainable and carbon-neutral, and remote access reduces resource consumption.

Structure Type

Application Range

Equipment / Function

• Application Areas: Different control modes are set for various heating and cooling equipment. There are multiple control mode options, as well as various optional and automatic functions. It can achieve motor protection, external control input, data exchange, double-pump management, etc., with multiple status displays and signal outputs.
• Equipment Configuration: Pumps with different nominal connection diameters have corresponding flange specifications. There are built-in communication interfaces and CIF module insertion positions, equipped with display screens, buttons, sensors, connectors, and other components.

Model Code Example

Technical Data

• Temperature range: -10°C to +110°C, -10°C to +90°C.
• Power connection: 1~230V, 50/60Hz.
• Protection level: IPX4D.
• Threaded joints and flange interfaces: There are specific specifications.
• Working pressure: Different for standard and special models.
• Insulation class: F.
• Interference emission and immunity meet the standards.
• Maximum flow and head: 112m³/h and 16m respectively.

Materials

• Bearings: Carbon graphite.
• Impeller: PPS - GF40.
• Pump housing: Grey cast iron.
• Shaft: 1.4028, DLC coating.
