Wilo-VeroTwin-DPL Small Recirculating Pump For Heating Water And Cooling Systems

Name: Wilo-VeroTwin-DPL Small Recirculating Pump For Heating Water And Cooling Systems
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Wilo-VeroTwin-DPL
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Wilo

Model Number: Wilo-VeroTwin-DPL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: within 15 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Wilo small recirculating pump, VeroTwin small recirculating pump, VeroTwin wilo heating pump


Permissible Temperature Range:	-20 °C To +120 °C	Mains Connection:	3~400 V, 50 Hz (others On Request)
Protection Class:	IP 55	Nominal Diameter:	DN 32 To DN 100
Max. Operating Pressure:	10 Bar (special Version: 16 Bar)	Maximum Head:	50h/m
Maximum.flow:	220m³/h

Permissible Temperature Range:	-20 °C To +120 °C
Mains Connection:	3~400 V, 50 Hz (others On Request)
Protection Class:	IP 55
Nominal Diameter:	DN 32 To DN 100
Max. Operating Pressure:	10 Bar (special Version: 16 Bar)
Maximum Head:	50h/m
Maximum.flow:	220m³/h

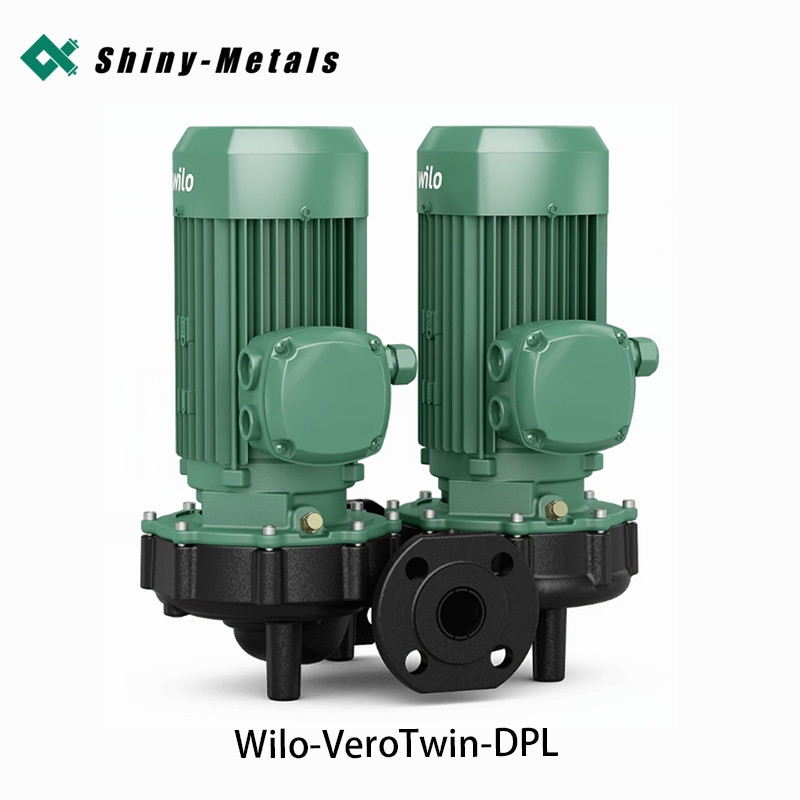

Wilo-VeroTwin-DPL Small Recirculating Pump For Heating Water And Cooling Systems

The Wilo VeroTwin - DPL is a dry rotor double-head pump with a series structure. It is used for pumping media without abrasive materials in specific systems. It has the advantages of saving installation space, energy conservation, and corrosion resistance, and provides a variety of supporting services and documents.

Advantage Features

Space and Cost Saving: The double-head pump structure reduces installation space and cost.
Diverse Operating Modes: It can be used for main/standby or peak load operation (requiring external assistance).
Strong Corrosion Resistance: The electrophoretic coating improves the corrosion resistance standard.
Reasonable Motor Design: The series design adopts a motor with an integral shaft, and the N model has a specific motor configuration.

Environmental Characteristics

The high-efficiency hydraulic components and IE3 motor save energy.
The structure of the cast iron parts is optimized to reduce weight.
The production in European factories is sustainable and carbon-neutral.

Structure Type

It has a flange connection and includes components such as a conversion valve, mechanical seal, and a motor with an integral shaft.

Application Range

It is used for pumping hot water, cold water, and water/ethylene glycol mixtures that meet the VDI 2035 standard in hot water, cold water, and cooling systems.

Model Code Example

For example, DPL 40/160 - 4/2. "DPL" represents a pipeline double-head pump. "40" is the nominal diameter DN of the pipeline connection. "160" is the nominal impeller diameter. "4" is the nominal motor power P2 (kW). "2" is the number of poles.

Technical Data

Temperature range: -20°C to +120°C.
Power connection: 3~400V, 50Hz (other options can be provided upon request).
Protection level: IP55.
Nominal diameter: DN 32 to DN 100.
Maximum working pressure: 10 bar (special model: 16 bar).

Materials

Pump casing and coupling bracket: EN - GJL - 250.
Impeller: PP fiberglass-reinforced or EN - GJL - 200 (depending on the pump type).
Shaft: 1.4021.
Mechanical seal: AQ1EGG, and other seals can be provided upon request.

Wilo-VeroTwin-DPL Small Recirculating Pump For Heating Water And Cooling Systems 0

Wilo-VeroTwin-DPL Small Recirculating Pump For Heating Water And Cooling Systems 1
