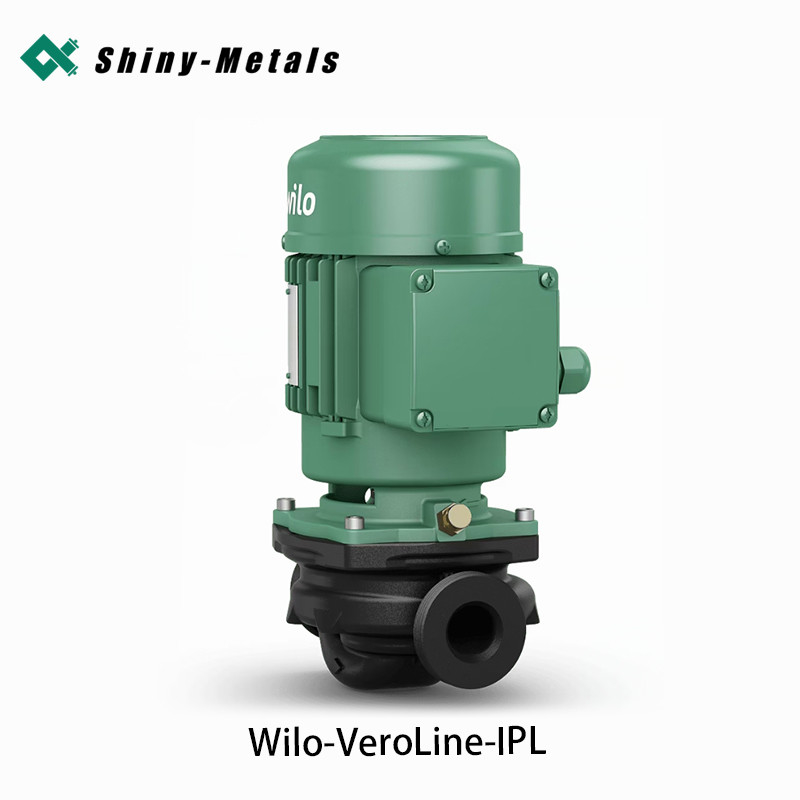

Wilo-VeroLine-IPL Industrial And Commercial Building Heating Water Pumps

Name: Wilo-VeroLine-IPL Industrial And Commercial Building Heating Water Pumps
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: WILO-VeroLine-IPL
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: WILO

Model Number: WILO-VeroLine-IPL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: within 15 workdays

Payment Terms: L/C,D/A,D/P,T/T,,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Lightweight dhw recirculation pump, Cast Iron dhw recirculation pump, DHW vertical inline multistage pump


Motor Power:	Up To 160 KW	Application:	Water Supply, Heating, Air-conditioning
Material:	Cast Iron, Stainless Steel	Temperature Range:	-10°C To +120°C
Shaft Seal:	Mechanical Seal	Maximum Operating Pressure:	16 Bar
Head:	Up To 160 M	Voltage:	380-480 V
Maximum Head:	50h/m	Maximum.flow:	120m³/h

Motor Power:	Up To 160 KW
Application:	Water Supply, Heating, Air-conditioning
Material:	Cast Iron, Stainless Steel
Temperature Range:	-10°C To +120°C
Shaft Seal:	Mechanical Seal
Maximum Operating Pressure:	16 Bar
Head:	Up To 160 M
Voltage:	380-480 V
Maximum Head:	50h/m
Maximum.flow:	120m³/h

Wilo-VeroLine-IPL Industrial And Commercial Building Heating Water Pumps

Your advantages

High standard of corrosion protection thanks to cataphoretic coating
Standard condensate drainage holes in the motor housings and lanterns
Series design: motor with one-piece shaft
Version N: Standard motor V1 with stainless steel plug shaft
Bidirectional, force-flushed mechanical seal

Design

Glanded pump in in-line design with screwed connection or flange connection

Application

Pumping of heating water (acc. to VDI 2035), chilled water and water/glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Typekey

Example	IPL 40/160-4/2
IPL	In-line pump
40	Nominal diameter DN of the pipe connection
160	Nominal impeller diameter
4	Rated motor power P2 in kW
2	Number of poles

Technical data

Permissible temperature range -20 °C to +120 °C
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP 55
Nominal diameter Rp 1 to DN 100
Max. operating pressure 10 bar (special version: 16 bar)

Materials

Pump housing and lantern: EN-GJL-250
Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
Shaft: 1.4021
Mechanical seal: AQEGG; other mechanical seals on request

Construction

Single-stage, low-pressure centrifugal pump in in-line design with

Mechanical seal
Flange connection with pressure measuring connection R ¹/8
Motor with one-piece shaft

Scope of delivery

Pump
Installation and operating instructions

Options

...-H4 variant with PN6/10 flanges (at additional charge)
...-H5 variant with PN16 housing (at additional charge)
Other voltages and frequencies as well as ATEX approval on request

Accessories

Mounting brackets for installation on a base
PTC thermistor sensor, PTC resistor tripping relay
Special motors
Special mechanical seals
SC-HVAC, CC-HVAC control systems and switchgears
