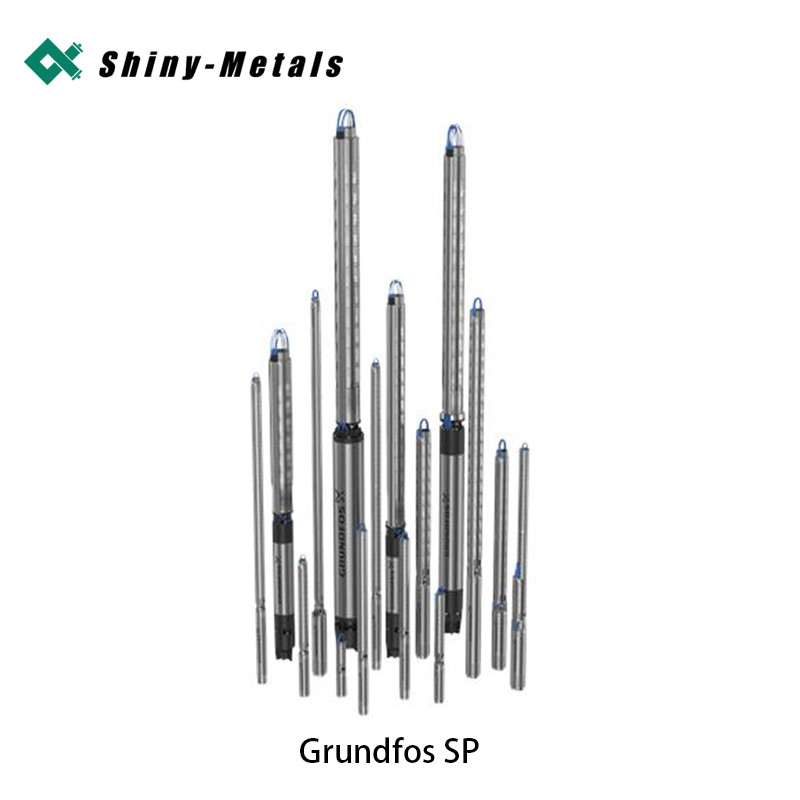

Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump

Name: Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Sp 215-11 N
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Grundfos

Model Number: Sp 215-11 N

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                60Hz water recirculation pump, Wilo MAXO water recirculation pump, Wilo Yonos Pump


Maximum Operating Pressure:

60bar

Liquid Temperature:

-15 .. 90 °c

Maximum Operating Pressure:	60bar
Liquid Temperature:	-15 .. 90 °c

Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump

SP 215-11 N Applicable to

1.Domestic groundwater intake
2.Boosting of domestic water supply
3.Groundwater intake
4.irrigation
5.Water supply for residential areas and buildings

SP 215-11 N

Submersible deep well pump, suitable for transporting clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, EN 1.4401(AISI 316), Can ensure high corrosion resistance. The pump is equipped with a 220kWMMS1200 motor with a sand cover, water lubricated sliding bearings, and volume compensating diaphragm. The rewinding motor structure allows for full access to the windings, making rewinding convenient. The stator winding is PE/PA insulated and suitable for continuous operation (S1). Suitable for temperatures up to 50 ° C. A mechanical shaft seal is installed on the water pump. The motor is not equipped with a temperature sensor. If temperature monitoring is required, Pt100 or Pt1000 sensors can be installed. The motor is used for direct online starting (DOL).

Liquid

Transported liquid: water
Liquid temperature range: -15 .. 35 °C
0.15 m/sec maximum fluid temperature at: 30 °C
Max liquid t at 0.5 m/sec:35 °C
Liquid temperature during operation:20 °C
Density:998.2 kg/m³

Technology

Pump speed on which pump data are based:	2900 revolutions per minute
Rated flow:	215 m³/h
Rated head:	274 m
Shaft seal of motor:	CER/CARBON
Approvals:	CE,EAC,UKCA,SEPRO,MOROCCO
Curve tolerance:	ISO9906:2012 3B
Motor version:	T35
Return valve:	YES

Material Science

pump:	Stainless steel
	EN 1.4401
	AISI 316
impeller:	Stainless steel
	EN 1.4401
	AISI 316
electric machinery:	stainless steel
electric machinery:	DIN W.-Nr. 1.4401

Installation

Maximum operating pressure:	60 bar
Maximum permissible outlet pressure:	44.5 bar
Interface model:	Rp
Size of connection:	6 inch
Motor diameter:	12 inch
Minimum borehole diameter:	300 mm

Electrical data

Motor model:	MMS12000
Motor flange design:	Grundfos
rated power--P2:	220 kW
Pump required power(P2):	220 kW
Power frequency:	50 Hz
Rated voltage:	3 x 380-400-415 V
Rated current:
Starting current:	580-610-620 %
Cos phi--Power factor:	0.89-0.85-0.81
Rated speed:	2910-2920-2930 RPM (revolutions per minute)
Starting method:	Direct start
Built-in temperature sensor:	No

Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump 1

Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump 2

Grundfos Sp 215-11 N Water Pump, Deep Well Pump High-Pressure Pump 3
