Grundfos Nbge 125-80-160 Water Pump for Optimal Heating Solutions

Name: Grundfos Nbge 125-80-160 Water Pump for Optimal Heating Solutions
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Nbge 125-80-160
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Grundfos

Model Number: Nbge 125-80-160

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable price

Packaging Details: Wooden box

Delivery Time: 15--60 workdays

Payment Terms: L/C,D/P,D/P,T/T

Supply Ability: Peak Season Lead Time, 1-3 months, Off Season Lead Time, one month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                DN125 centrifugal reciprocating pumps, 1hp centrifugal reciprocating pumps, DN125 motor water pump 1hp


Net Weight:	150 Kg	Transported Liquids:	Water
Liquid Temperature Range:	0 .. 120 °c	Liquid Temperature During Operation:	20 °c
Density:	998.2 Kg/M³

Net Weight:	150 Kg
Transported Liquids:	Water
Liquid Temperature Range:	0 .. 120 °c
Liquid Temperature During Operation:	20 °c
Density:	998.2 Kg/M³

Grundfos Nbge 125-80-160 Water Pump for Optimal Heating Solutions

End - suction close - coupled single - stage pump

NBGE 125 - 80 - 160/161 AAF2AESBAQEPWB

Applications:
1.Commercial heating
2.Commercial air - conditioning
3.Commercial water boosting
4.District heating
5.Industrial cleaning processes
6.Heat supply
7.Desalination
8.Municipal water transmission and distribution
9.Irrigation
10.Water supply for residential areas and buildings

Short - coupled pump with MGE motor in accordance with ISO 2858

High - Efficiency NBGE End - Suction Power Supply for Demanding Applications
The Grundfos NBGE end - suction close - coupled pump is a non - self - priming single - stage centrifugal volute pump with an axial suction port, a radial discharge port, and a horizontal shaft. If your pump is for demanding applications with different flow requirements, the NBGE can be equipped with an 11 - kW permanent - magnet MGE motor, with a built - in variable - frequency drive and IE5 efficiency, maintaining high efficiency at all times.

The close - coupled pump has a compact design and can be installed in limited areas. The main dimensions of the NBGE pump comply with the ISO 2858 standard. All Grundfos end - suction pumps are tested according to the acceptance grade standard of ISO 9906:2012 before leaving the factory.

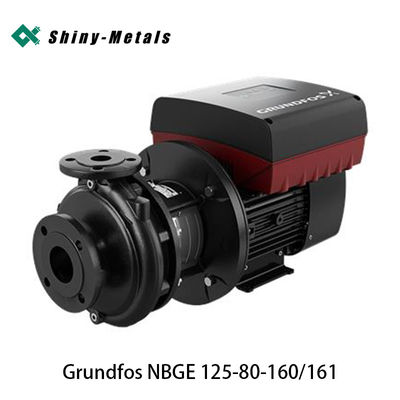

Grundfos Nbge 125-80-160 Water Pump for Optimal Heating Solutions 0

NBGE 125 - 80 - 160/161 AAF2AESBAQEPWB

The non - self - priming single - stage volute centrifugal pump is designed in accordance with the ISO 5199 standard, and its dimensions and rated performance comply with the ISO 2858 standard (16 bar). The flanges are of PN 16 type, and their dimensions conform to the EN 1092 - 2 standard. The pump is equipped with an axial suction port, a radial discharge port, a horizontal shaft, and a back - pull - out design, which allows maintenance personnel to disassemble the motor, motor base, cover, and impeller without loosening the pump casing or pipes. The unbalanced O - ring shaft seal meets the DIN EN 12756 standard. An air - cooled permanent - magnet synchronous motor is closely coupled to the pump. The junction box of the motor contains a frequency converter and a PI controller. This enables the system to continuously adjust the motor speed, allowing the pump to be adjusted to the optimal working state according to the environmental conditions.

Controller
Frequency converter: Built - in
Pressure sensor: N

Liquid
Liquid being transported: Water
Liquid temperature range: 0..120 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology
Pump speed based on which pump data is obtained: 2895 revolutions per minute
Rated flow rate: 188.7 m³/h
Rated head: 24.22 meters
Actual impeller diameter: 161 mm
Nominal impeller diameter: 160
Type of impeller: Standard
Shaft - seal configuration: Single
Main shaft seal: BAQE
Shaft seal code: BAQE
Curve tolerance: ISO9906:2012 3B
Bearing design: Standard

Materials
Pump casing: Cast iron
Pump housing: EN - GJL - 250
Pump casing: ASTM class 35
Wear ring: Brass
CuZn34Mn3AI2Fe1 - C
Impeller: Cast iron
EN - GJL - 200
ASTM class 30
Internal pump - house coating: CED
Shaft: Stainless steel
EN 1.4301
AISI 304

Installation
Ambient temperature range: - 20..50 °C
Maximum operating pressure: 16 bar
Pipe connection standard: EN 1092 - 2
Inlet size: DN 125
Outlet size: DN 80
Pressure rating for pipe connection: PN 16
Bearing lubrication: Grease
Pump housing with feet: No
Yes = With support block, No = Without support block: N

Electrical data
Rated power - P2: 18.5 kW
Power supply frequency: 50 Hz
Rated voltage: 3 x 380 - 480 V
Rated current: 33.0 - 27.8 A
Cos phi - Power factor: 0.94 - 0.92
Rated speed: 360 - 4000 revolutions per minute
IE efficiency class: IE5
Motor full - load efficiency: 92.8 %
Number of motor poles: 2
Enclosure rating (IEC 34 - 5): IP55
Insulation class (IEC 85): F
Motor number: 92875518
Bearing insulation type N - end: Steel Bearing

Others
Minimum efficiency index, MEI ≥: 0.70
Net weight: 150 kg
Gross weight: 174 kg
Shipping volume: 0.707 m³
