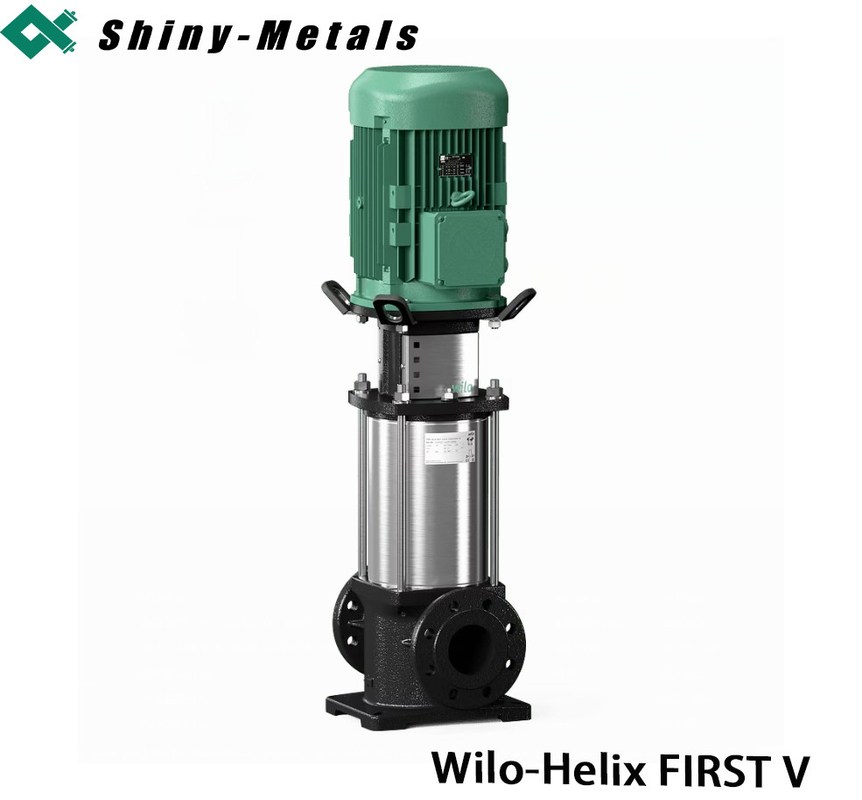

Vertical Water Centrifugal Pressure Boosting Pump Wilo-Helix FIRST V ODM

Name: Vertical Water Centrifugal Pressure Boosting Pump Wilo-Helix FIRST V ODM
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Wilo-Helix FIRST V
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: Wilo-Helix FIRST V

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Wooden case packing

Delivery Time: 5-8 weeks

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Vertical Pressure Boosting Pump, ODM Pressure Boosting Pump, Vertical pump booster water


Flow Rate:	36m³/h	Maximum Pressure:	25bar
Electrical Connection:	3~400 V (±10 %), 50 Hz	Temperature Range:	-20 °C ——+120 °C
Maximum Inlet Pressure:	10 Bar	Class Of Protection:	IP55
Maximum Ambient Temperature:	-15 °C —— +50 °C

Flow Rate:	36m³/h
Maximum Pressure:	25bar
Electrical Connection:	3~400 V (±10 %), 50 Hz
Temperature Range:	-20 °C ——+120 °C
Maximum Inlet Pressure:	10 Bar
Class Of Protection:	IP55
Maximum Ambient Temperature:	-15 °C —— +50 °C

Vertical Water Centrifugal Pressure Boosting Pump Wilo-Helix FIRST V ODM

Wilo-Helix FIRST V Vertical high pressure multistage centrifugal pump

Application

Water distribution and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Fire-fighting systems
Washing systems
Irrigation

Equipment/function

Corrosion-resistant impellers, guide vanes and stage housings

Typekey

Example:	Helix FIRST V 3606/2-5/25/E/KS/../400-50
Helix FIRST V	Vertical high-pressure multistage centrifugal pump in in-line design
36	Flow rate in m3/h
06	Number of impellers
2	Number of trimmed impellers
5	Pump material
	5 = Pump housing EN-GJL-250 cataphoretic-coatedHydraulics 1.4307 (AISI 304L)
25	Maximum operating pressure in bar
	16 =Helix FIRST V 2.. to 16..: 16 bar: Oval flange PN 16Helix FIRST V 22.. to 52..: 16 bar: DIN round flange PN 16
	25 = Helix FIRST V 2.. to 16.. -5/25/E/S/..: 16 bar:DIN round flange PN 25Helix FIRST V 2.. to 16.. -5/25/E/KS/..: 25 bar:DIN round flange PN 25Helix FIRST V 22.. to 52..: 25 bar:DIN round flange PN 25
	30 = Helix FIRST V 2.. to 52..: 30 bar:DIN round flange PN 40
E	Seal typeE = EPDM
K	Cartridge type mechanical seal
S	The coupling guard is on a line with suction and discharge ports of the pump.
400	Connection voltage in V
50	Frequency in Hz

Technical data

Electrical connection: 3~400 V (±10 %), 50 Hz
- ≤ 4 kW 230 V/ 400 V; Δ/Y
- > 4 kW 400 V/ 690 V; Δ/Y
Fluid temperature range: -20 to 120 °C
Max. operating pressure: 16, 25 or 30 bar
Protection class: IP 55
Max. ambient temperature: -15 °C – +40 °C
Helix FIRST V 2 – 16: PN 16 with oval flanges, PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005
Helix FIRSTV 22 – 52: PN 16/PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005

Materials

Impellers, stage housings and guide vanes of stainless steel 1.4307 (AISI 304L)
Pump housing made of EN-GJL-250, cataphoretically coated
Shaft made of stainless steel 1.4057 (AISI 304L)
Sleeve under the mechanical seal 1.4404 (AISI 316L)
O-Ring made of EPDM
Jacket pipe made of stainless steel 1.4301 (AISI 304)

Construction

Pumps can be adapted to specific circumstances on request (e.g. motor protection, ATEX, extended ambient temperature range).

Vertical Water Centrifugal Pressure Boosting Pump Wilo-Helix FIRST V ODM 0

Design

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Vertical Water Centrifugal Pressure Boosting Pump Wilo-Helix FIRST V ODM 1

Scope of delivery
- Helix FIRST V high-pressure multistage centrifugal pump
- Installation and operating instructions
- Helix FIRST 2-16 (version PN16 with oval flanges): Cast iron counter flanges with the corresponding screws, nuts and gaskets
