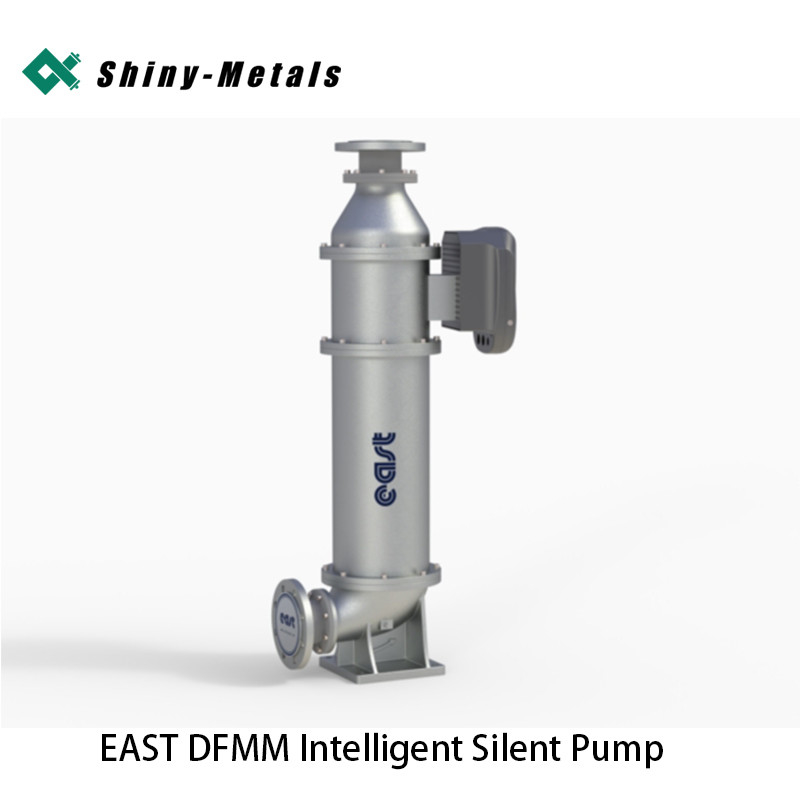

Name: East Dfmm Intelligent Silent Pump for Building Secondary Pressurization
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Dfmm
Price: 4,900.00 USD
Availability: InStock

East Dfmm Intelligent Silent Pump for Building Secondary Pressurization

Product Details

Place of Origin: China

Brand Name: East

Model Number: Dfmm

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Features

1. Low Noise

Equipped with silent - type submersible pumps + silent submersible motors/shielded motors.
The factory - matched flow guide cover can effectively absorb noise.

2. Intelligence

The dedicated pump frequency converter has control and variable - frequency functions, and multiple frequency converters can communicate with each other.
It has protection functions such as repeated start - stop, phase - loss, over - current, and idle - running protection.
The frequency converter has a one - key function to adjust pressure and various parameters, which can be operated without professional personnel.

3. Energy - Saving

The efficiency of the pump is higher than the national standard, making the product more energy - efficient.

4. Safety and Convenience

It has a complete set of protection functions.
The wetted parts are made of sanitary - grade stainless steel, avoiding secondary pollution.
The segmented modular structure makes inspection and maintenance convenient.

Basic Working Principle

The intelligent silent pump assembles the submersible pump and the silent submersible motor in the pipeline and fixes them in the pipeline through a specific method to ensure no vibration during operation. The submersible motor is filled with antifreeze liquid inside, which lubricates the bearing. Water - cooling is adopted externally. Through precise calculation, the internal water flow of the pipeline meets the requirement of cooling the motor, thus increasing the service life of the submersible motor.

Principle of Silent Operation

Our company has conducted multiple tests and improvements on the structure and material of key components based on ordinary submersible pumps, further controlling the noise. In terms of the motor, silent submersible motors or shielded motors are used. Continuous improvements have been made to the thrust bearing inside the motor to ensure the smooth operation of the motor and greatly reduce noise. The liquid filled between the motor and the cylinder also plays a role in noise reduction. The overall structure optimization has significantly improved the product in terms of shockproof and noise reduction.

Power Supply:	Three - Phase (380 ± 5%) V	Medium Temperature:	Maximum Water Temperature 35°c
Rotational Speed:	2850 R/Min	Maximum Particle Diameter Of Medium:	≤ 0.2 Mm

Power Supply:	Three - Phase (380 ± 5%) V
Medium Temperature:	Maximum Water Temperature 35°c
Rotational Speed:	2850 R/Min
Maximum Particle Diameter Of Medium:	≤ 0.2 Mm
