Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3

Name: Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Wilo-Sub TWU 3 Plug & Pump
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Wilo

Model Number: Wilo-Sub TWU 3 Plug & Pump

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable price

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: ,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ， Off Season Lead Time: 1months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Automatic submersible bore pump, submersible bore pump Booster, Automatic borehole booster pump


Mains Connection:	1~230 V, 50 Hz Or 3~400 V, 50 Hz	Submerged Operating Mode:	S1
Fluid Temperature:	3 ... 35 °C	Minimum Flow Rate At Motor:	0.08 M/s
Max. Sand Content:	50 G/m3	Max. Number Of Starts:	30/h
Max. Immersion Depth:	27 M	Protection Class:	IP58
Discharge Port:	Rp1	Maximum Head:	90m/h
Maximum.flow:	2.5m³/h

Mains Connection:	1~230 V, 50 Hz Or 3~400 V, 50 Hz
Submerged Operating Mode:	S1
Fluid Temperature:	3 ... 35 °C
Minimum Flow Rate At Motor:	0.08 M/s
Max. Sand Content:	50 G/m3
Max. Number Of Starts:	30/h
Max. Immersion Depth:	27 M
Protection Class:	IP58
Discharge Port:	Rp1
Maximum Head:	90m/h
Maximum.flow:	2.5m³/h

Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3

Wilo-Sub TWU 3 Plug & Pump Wilo-Sub TWU 3 Plug & Pump The Durable Borehole Pump for Your Sprinkling Irrigation and Water Supply

Your advantages

Easy installation due to preinstalled and pre-wired components
Parts that come in contact with fluids are corrosion-free
Integrated non-return valve

Design

Water-supply unit with submersible pump, control and complete accessories

Application

For pumping rainwater and industrial water from boreholes and wells for sprinkling, irrigation and water supply.

Equipment/function

Wilo-Plug & Pump package Sub-I (1/FC)

Integrated non-return valve
On/off switch
Thermal motor protection
Wilo-HiControl 1 for automatic flow and pressure monitoring with integrated dry-running protection

Wilo-Plug & Pump package Sub-II (2/PS)

Integrated non-return valve
On/off switch
Thermal motor protection
Wilo pressure switching 0 – 10 bar, including 18 l diaphragm expansion tank, manometer, shut-off device and pressure switch for automatic control

Typekey

Example:	Wilo-Sub TWU 3-0115-EM-PnP/FC
TWU	Series
3	Diameter of the hydraulic unit in inches ["]
01	Rated volume flow [m3/h]
15	Number of hydraulic stages
EM	Mains connection: EM = Single-phase current DM = Three-phase current
PnP	Plug & Pump water supply system
FC	Version FC = Package Sub-I with HiControl 1 DS = Sub-II package with pressure switching

Technical data

Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Submerged operating mode: S1
Fluid temperature: 3 ... 35 °C
Minimum flow rate at motor: 0.08 m/s
Max. sand content: 50 g/m3
Max. number of starts: 30/h
Max. immersion depth: 27 m
Protection class: IP58
Discharge port: Rp1

Materials

Hydraulics housing: 1.4301
Impellers: Polycarbonate
Hydraulic shaft: 1.4104
Motor housing: 1.4301
Motor shaft: 1.4305

Construction

Submersible pump for vertical or horizontal installation.

Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3 0

Hydraulics

Multistage submersible pump with radial impellers in sectional construction and integrated non-return valve. Discharge port with threaded flange and female thread. All parts that come in contact with the fluid are made of corrosion-free materials.

Motor

Single-phase or three-phase current motor for direct starting. The oil-filled motor is rewindable and has self-lubricating motor bearings.

Cooling

The motor is cooled by the pumped fluid. Always operate the pump in a submerged state.
Vertical installation is possible with or without cooling jacket.
Horizontal installation must be performed in conjunction with a cooling jacket.

Scope of delivery

Wilo-Plug & Pump package Sub-I (1/FC)

Motor and hydraulics fully assembled
30 m connection cable
Switch box with capacitor
Wilo-HiControl 1
30 m guy rope
Installation and operating instructions

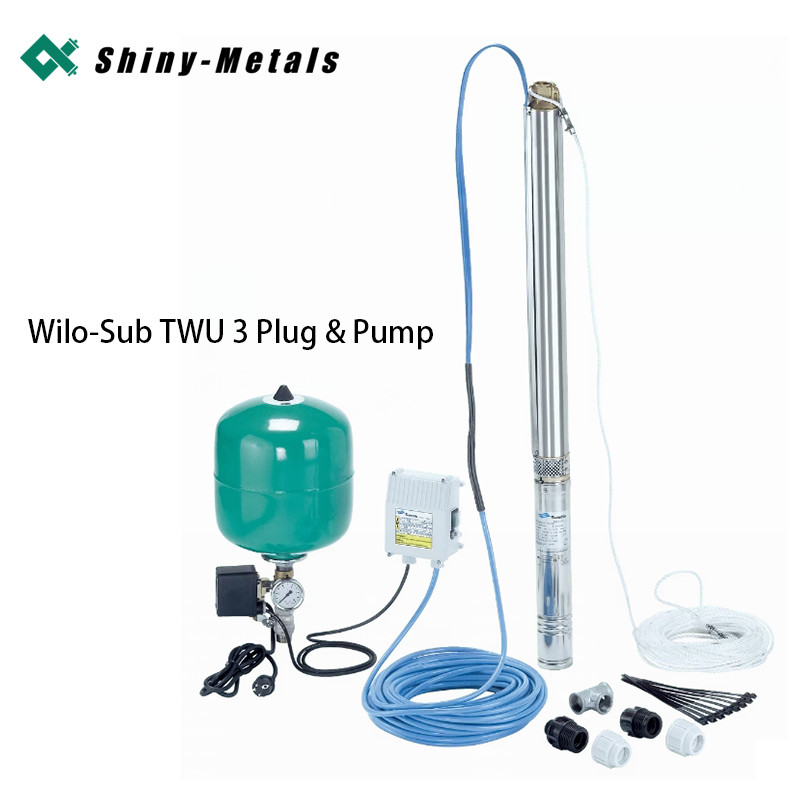

Wilo-Plug & Pump package Sub-II (2/PS)

Motor and hydraulics fully assembled
30 m connection cable
Switch box with capacitor
18 l diaphragm expansion tank
Pressure gauge
Shut-off device
Pressure switch
30 m guy rope
Installation and operating instructions

Accessories

Cooling shrouds
Connection and installation material

Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3 1

Automatic Submersible Bore Pump Borehole Booster Pump Wilo-Sub TWU 3 2
