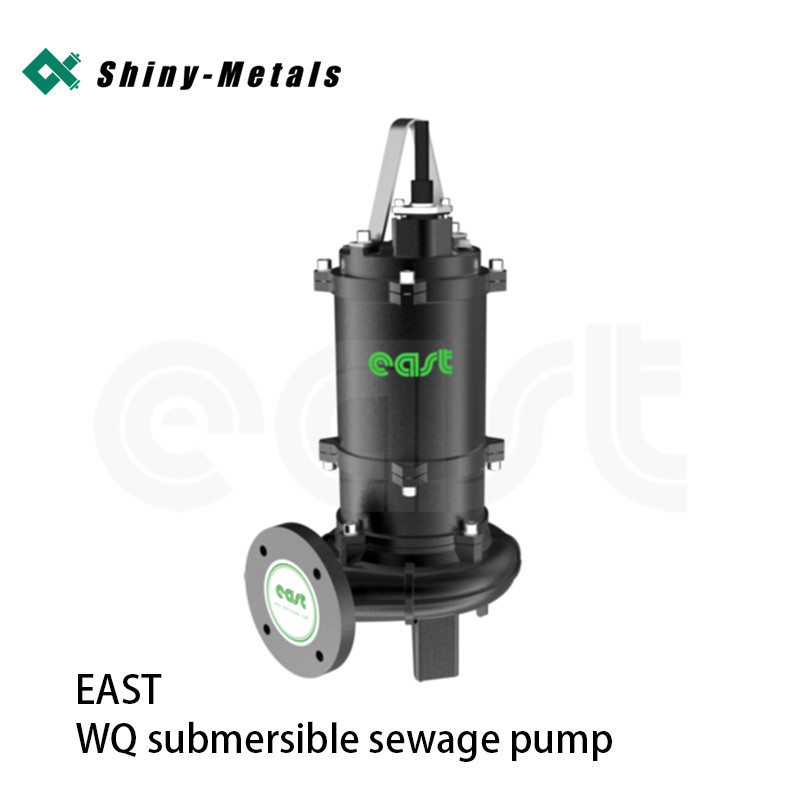

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump

Product Details

Place of Origin: china

Brand Name: East

Model Number: Wq

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Features:

The submersible cable is designed with a seal to ensure that no liquid seeps into the motor through the cable. The wiring method is a plug - in type, which is quick, convenient, and reliable.
It adopts a unique large - passage impeller structure, which can effectively pass solid particles with a diameter about 50% of the pump diameter. It has excellent performance and strong passing ability.
The shaft seal consists of two independent single - end - face mechanical seals, providing a double safeguard and further improving the sealing reliability, ensuring the long - term reliable operation of the pump.
Various protection devices can be installed according to user requirements, including stator winding over - temperature protection, bearing over - temperature protection, and oil chamber leakage protection to enhance the safety of the electro - pump during use.

WQ Structure Diagram

Proprietary patented cable sealing technology: A newly - developed submersible motor with a fully - sealed cable - entry design ensures reliable sealing and no leakage.
High - grade insulation and modular design: The submersible motor has a high insulation class. With an overall modular design, each motor model can be matched with several impeller models, featuring good interchangeability.
Dual - independent mechanical shaft seals: Two independent mechanical shaft seals completely isolate the motor from the pump. Installed in a tandem arrangement, they provide double protection. The mechanical seals adopt self - cleaning technology.
Multiple built - in sensors: Multiple sensors inside can continuously and effectively monitor the operating status of the pump, realize monitoring of the pump, and protect it.
Large - passage, high - efficiency non - clogging impeller design: With a wide - diameter volute, it has excellent and stable performance, ensuring strong passage - through ability.

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 0

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 1

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 2

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 3

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 4

East Wq Submersible Sewage Pump Sewage Waste Submersible Electric Pump 5

Flow Rate:	5.6 - 580 M³/H	Head:	4 - 48 M
Medium Temperature:	T ≤ 40°c	Medium Density:	≤ 1.1×10³ Kg/M³
Medium PH Range:	5 - 9	Motor Insulation Class:	F - Class
Protection Level:	Ipx8

Flow Rate:	5.6 - 580 M³/H
Head:	4 - 48 M
Medium Temperature:	T ≤ 40°c
Medium Density:	≤ 1.1×10³ Kg/M³
Medium PH Range:	5 - 9
Motor Insulation Class:	F - Class
Protection Level:	Ipx8
