Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3

Name: Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Wilo-Medana PE3
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: Wilo-Medana PE3

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Wooden case packing

Delivery Time: 5-8weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Centrifugal Wilo Recirculating Pump, Medana PE3 Wilo Recirculating Pump, Medana small recirculating water pump


Power Connection:	1~230 V ± 10%，50 Hz	Ambient Temperature:	5 °C _40 °C
Maximum Working Pressure:	1.8 Bar	Class Of Protection:	IPX4

Power Connection:	1~230 V ± 10%，50 Hz
Ambient Temperature:	5 °C _40 °C
Maximum Working Pressure:	1.8 Bar
Class Of Protection:	IPX4

Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3

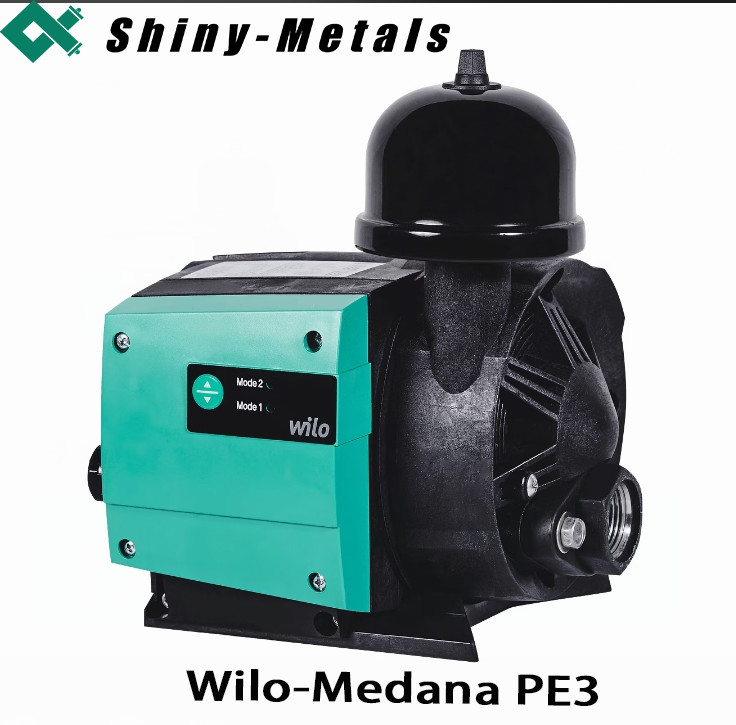

Wilo-Medana PE3 Non-self-priming multistage centrifugal pump

Safe and quiet pressure boosting in a residential environment.

The Wilo-Medana PE3 is a ready-to-plug, pressure boosting centrifugal pump, which is also suitable for use in residential environments thanks to its compact design and quiet operation. The pump is equipped with numerous protective functions and is easy to adjust via an operating button. LED control lights indicate the set operating mode at all times.

Design

Non-self-priming multistage centrifugal pump

Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3 2

Application

Automatic low-noise water supply/pressure boosting for residential properties

Equipment/function

Low-noise operation due to fluid-cooled motor
Drinking water approval for all parts that come into contact with the fluid
Electrical connection cable incl. mains plug
Two constant speeds (Mode 1, Mode 2) in automatic or manual operation
Control lamps (LED) for the operating status
Pressure compensation vessel for constant operating pressure
Thermal motor protection
Integrated pressure sensor for:
- automatic operation,
- dry-running protection(low water protection) and overpressure protection
Integrated temperature sensor for:
- motor blocking protection,
- excess temperature protection and anti-freezing protection
- Typekey

  NO VALUE
  Technical data
  - Mains connection 1~230 V ± 10 %, 50 Hz
  - Connection (pressure side and suction side): Rp1
  - Fluid temperature:

    Drinking water: +5 °C to +23 °C

    Not used for drinking water: to +35 °C
  - Ambient temperature: 5 °C to 40 °C
  - Max. operating pressure: 1.8 bar
  - Protection class: IPX4
  Materials
  - Pump housing: Plastic
  - Impeller: Plastic
  - Shaft: Stainless steel
  - Mechanical seal: Carbon/ceramic
  Scope of delivery
  - Pump
  - Installation and operating instructions
