Grundfos Ls 500-400-423A Water Pump Commercial Heating Circulation Booster Centrifugal Pump

Name: Grundfos Ls 500-400-423A Water Pump Commercial Heating Circulation Booster Centrifugal Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: LSV 600-500-498A
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Grundfos

Model Number: LSV 600-500-498A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Wooden case packing

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Commercial Heating grundfos circulation pump, Commercial Heating Circulation Booster Centrifugal Pump


Gross Weight:	4850 Kg	Net Weight:	4410 Kg
Ambient Temperature Range:	-15.. 40 °C	Maximum Operating Pressure:	10 Bar
Rated Flow Rate:	2246 M³/h	Rated Head:	42.6 M
Liquid Being Conveyed:	Water	Liquid Temperature Range:	0.. 100 °C
Liquid Temperature During Operation:	20 °C	Density:	998.2 Kg/m³

Gross Weight:	4850 Kg
Net Weight:	4410 Kg
Ambient Temperature Range:	-15.. 40 °C
Maximum Operating Pressure:	10 Bar
Rated Flow Rate:	2246 M³/h
Rated Head:	42.6 M
Liquid Being Conveyed:	Water
Liquid Temperature Range:	0.. 100 °C
Liquid Temperature During Operation:	20 °C
Density:	998.2 Kg/m³

Grundfos Ls 500-400-423A Water Pump Commercial Heating Circulation Booster Centrifugal Pump

Grundfos LS 500-400-423A, 1F1DBBBQE1 220/4
Number: 99729902

Applicable for
1.Commercial heating
2.Commercial air conditioning
3.Commercial water pressure boosting
4.District heating
5.District cooling
6.Process water distribution
7.Heating
8.Cooling
9.Process water treatment
10.Desalination
11.Surface water intake
12.Drinking water treatment
13.Municipal water distribution
14.Irrigation
15.Community and building water supply

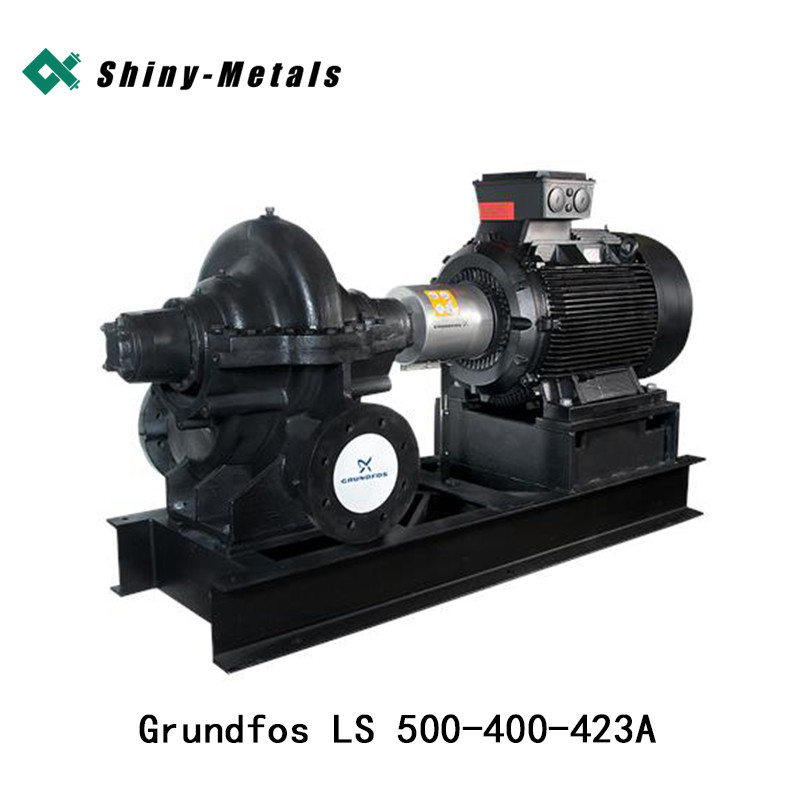

Grundfos LS is a horizontal, single-stage or double-stages, between bearings, split case pump. The axially split design allows easy removal of the top casing and access to the pump components without disturbing the motor or pipe work.Â

LS 500-400-423A ,1F1DBBBQE1 220/4

Non-self-priming, single-stage centrifugal pump with radial suction and radial discharge port. Pump for the pumping of thin, clean or slightly contaminated, non-aggressive liquids without abrasive or long-fibred solids. The pump has horizontal pump shaft and the housing can be dismantled in the horizontal plane along the drive shaft. Pump and motor are mounted as separate units on a common baseframe and connected via a flexible coupling. The impeller is hydraulically as well as dynamically balanced. Complete unit consists of pump, baseframe, coupling guard and electric motor.

Liquid
Liquid being conveyed: Water
Liquid temperature range: 0.. 100 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology
Rated flow rate: 2246 m³/h
Rated head: 42.6 m
Nominal impeller: 423 mm
Main shaft seal: BBQE
Approvals: CE
Curve tolerance: ISO9906:2012 2B
Direction of rotation: Clockwise
MinimumContinuousSuctionFlow: 924.9 m³/h
MaximumHead: 42.43 m
HeadRiseToShutOff: 0.00 %
FlowBEP: 1863 m³/h
FlowRatioBEP: 0.00 %
HeadRatio: 0.00 %
DiameterRatio: 0.00 %
MaximumWorkingPressure: 0.4154 MPa
MaxAllowableSuctionPressureLimit: 0.585 MPa

Materials
Pump casing: Cast iron
Pump housing: EN 1561 EN-GJL-250
Wear ring: Bronze
Impeller: Silicon bronze
ASTM B584
Shaft: EN 1.4021
AISI 420

Stainless steel

Installation
Ambient temperature range: -15.. 40 °C
Maximum operating pressure: 10 bar
Flange standard: DIN
Pump inlet: DN 500
Pump outlet: DN 400
Pressure rating for pipe connection: PN 10
Coupling model: Pin and Bush coupling

Electrical Data
Motor model: 355M
Rated power - P2: 220 kW
Power supply frequency: 50 Hz
Rated voltage: 3 x 380 - 400D/660 - 690Y V
Rated current: 387 - 368/223 - 213 A
Starting current: 710 %
Cos phi - Power factor: 0.90
Rated speed: 1490 revolutions per minute
Efficiency: IE3 96,0%
IE efficiency class: IE3
Motor full - load efficiency: 96.0 %
Motor efficiency at 3/4 load: 95.9 %
Motor efficiency at 1/2 load: 95.0 %
Number of motor poles: 4
Enclosure rating (IEC 34 - 5): 55 (Protect. water jets/dust)
Insulation class (IEC 85): F
Motor serial number: 99547693

Others
Net weight: 4410 kg
Gross weight: 4850 kg
Transport volume: 9.12 m³
