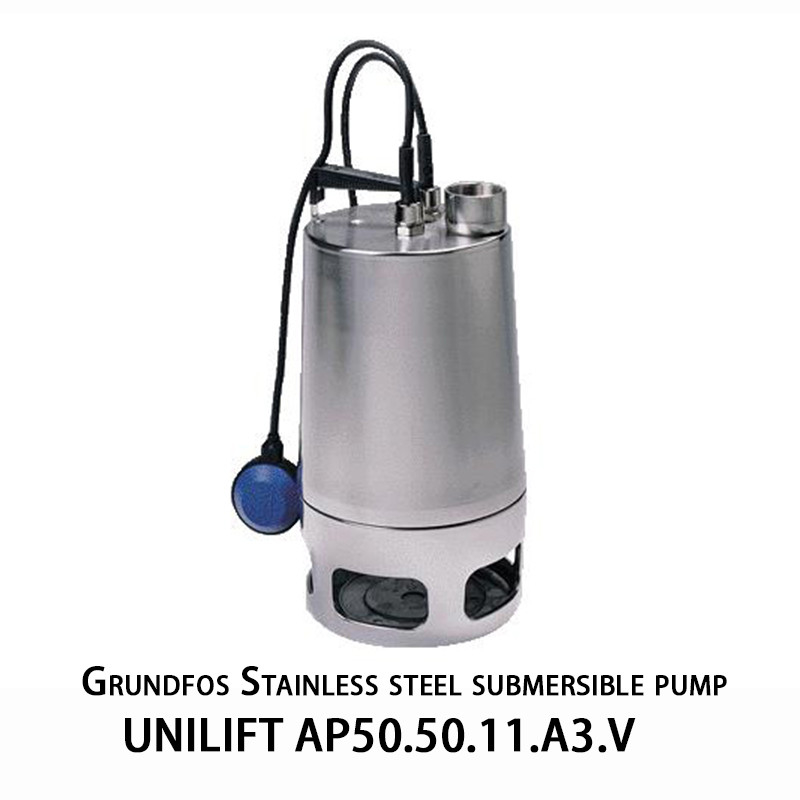

Grundfos AP50 Stainless Steel Submersible Pump For Pumping Surface Water And Groundwater

Name: Grundfos AP50 Stainless Steel Submersible Pump For Pumping Surface Water And Groundwater
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: UNILIFT AP50.50.11.A3.V
Price: 1,100.00 USD
Availability: InStock

Product Details

Brand Name: Grundfos

Model Number: UNILIFT AP50.50.11.A3.V

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable price

Packaging Details: Wooden box

Delivery Time: 10--60 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Grundfos AP50 submersible pump, surface water submersible pump, Stainless steel submersible pump


Maximum Head::	13m	Maximum Traffic::	9 L/S
Liquid Temperature Range:	0 - 55 °C	Liquid Temperature During Operation:	20 °C
Density:	998.2 Kg/m³	Power Supply Frequency:	50 Hz
Rated Voltage:	3 X 400 V	Net Weight:	15.4 Kg
Gross Weight:	18.5 Kg

Maximum Head::	13m
Maximum Traffic::	9 L/S
Liquid Temperature Range:	0 - 55 °C
Liquid Temperature During Operation:	20 °C
Density:	998.2 Kg/m³
Power Supply Frequency:	50 Hz
Rated Voltage:	3 X 400 V
Net Weight:	15.4 Kg
Gross Weight:	18.5 Kg

Grundfos AP50 Stainless Steel Submersible Pump For Pumping Surface Water And Groundwater

UNILIFT AP50.50.11.A3.V
Model of the submersible rainwater pump

A vertical single-stage stainless steel submersible pump with a vertical outlet and an integrated submersible three-phase totally enclosed motor. The insulation class of the motor is F. The pump is also equipped with a suction filter.

The pump is provided with a 10-meter power cable and a control box, which includes a motor starter and a motor protection device, as well as a 0.8-meter-long power cable. In addition, the pump is equipped with a level switch for automatic start and stop, with its own 10-meter-long cable.

The impeller is a VORTEX impeller that allows a free passage of 50 millimeters. This makes it suitable for pumping surface water, groundwater and similar water.

The pump has a double shaft seal and an intermediate oil reservoir pre-filled with non-toxic premium oil.

The pump is equipped with a delivery pipe and a cooling jacket that continuously cools the motor through the conveyed liquid. Its ball bearings have deep grooves coated with grease, which gives it a long service life.

Since the pump is equipped with a handle, it can be used at any time, and its power supply is completed through a 10-meter power cable. The power cable is of the socket type with a glass sealing compound inside the socket. The sealing compound can prevent moisture from entering the stator winding.

Submersible sewage pump
UNILIFT AP50.50.11.A3.V
Number: 96010935

Suitable for

Commercial sewage treatment
Domestic sewage treatment

UNILIFT AP50 is a stainless - steel submersible pump used for pumping non - corrosive water and gray water with particles up to 50 mm in size. It can be used as a portable or fixed installation.

Liquid:
Liquid Temperature Range: 0 - 55 °C
Liquid Temperature during Operation: 20 °C
Density: 998.2 kg/m³

Technology:
Maximum flow: 8.89 liters per second
Type of impeller: VORTEX
Max. Particle: 50 millimeters
Approvals: CE, RCM, LGABG, EAC, TUVRHWID, MORO, UKCA, CNROHSEXP, SEPRO

Materials:
Pump Casing: Stainless steel
Pump housing: EN 1.4301
Pump casing: AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Cable union: Brass
CW602N
C35330

Installation:
Ambient Temperature Range: 0 - 55 °C
Interface Type: Rp
Size of connection: 2 inch
Maximum installation depth: 7 meters
Place of installation: Indoor/outdoor

Electrical Data:
Power input P1: 1.9 kW
Rated power - P2: 1.2 kW
Power Supply Frequency: 50 Hz
Rated voltage: 3 x 400 V
Rated current: 3 A
Cos phi - Power Factor: 0.88
Rated driver speed: 2785 revolutions per minute
Enclosure Rating (IEC 34-5): IP68
Insulation class (IEC 85): F
Length of power cable: 10 meters
Cable Plug Type: NONE

Others:
Net Weight: 15.4 kg
Gross weight: 18.5 kg
