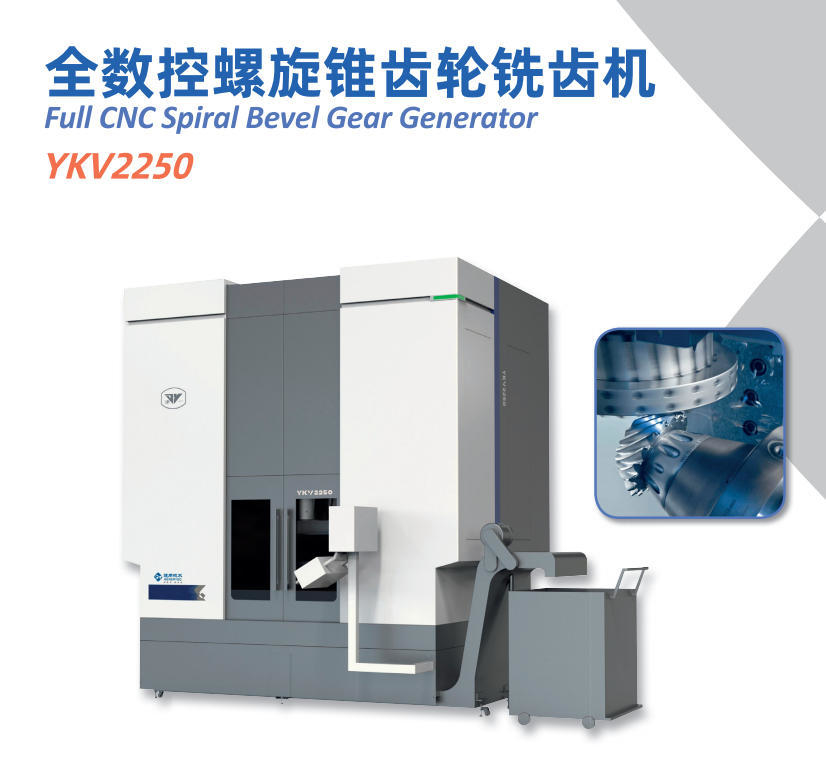

Full CNC Spiral Bevel Gear Generator

Machine Tool Parameters

Maximum workpiece diameter: 500mm
Maximum workpiece module: 10mm
Maximum workpiece cone distance: 250mm
Maximum workpiece tooth length: 85mm
Workpiece root cone angle: 80°
When the shaft intersection angle is 90°, the maximum transmission ratio of the workpiece: 1:8
Workpiece tooth number range: 10 - 200
When the transmission ratio is 1:1, the minimum number of workpiece teeth when α = 20°: 15
Maximum adjustment angle of the tool post: 8°
Distance from the end face of the workpiece box spindle to the machine center: 70 - 380mm
Number of reciprocating strokes of the planer tool per minute (15 levels): 98 - 500
Time required to machine each tooth (11 levels): 16.1 - 100s
Bed position: 40mm forward from the machine center
100mm backward from the machine center
Maximum swing angle of the rocker: 30° above the zero mark (can be specially ordered for larger angles)
30° below the zero mark (can be specially ordered for larger angles)
Taper of the spindle hole of the workpiece box: 1:20
Large end diameter of the spindle taper hole of the workpiece box: φ100mm
Through - hole diameter of the spindle taper hole of the workpiece box: φ78mm
Main motor power: 3KW
Rotation speed: 800 - 1300rpm
Total power of the machine tool: 20KVA
Overall dimensions (length x width x height): 2400x1800x1800mm
Net weight of the machine tool: 8t
