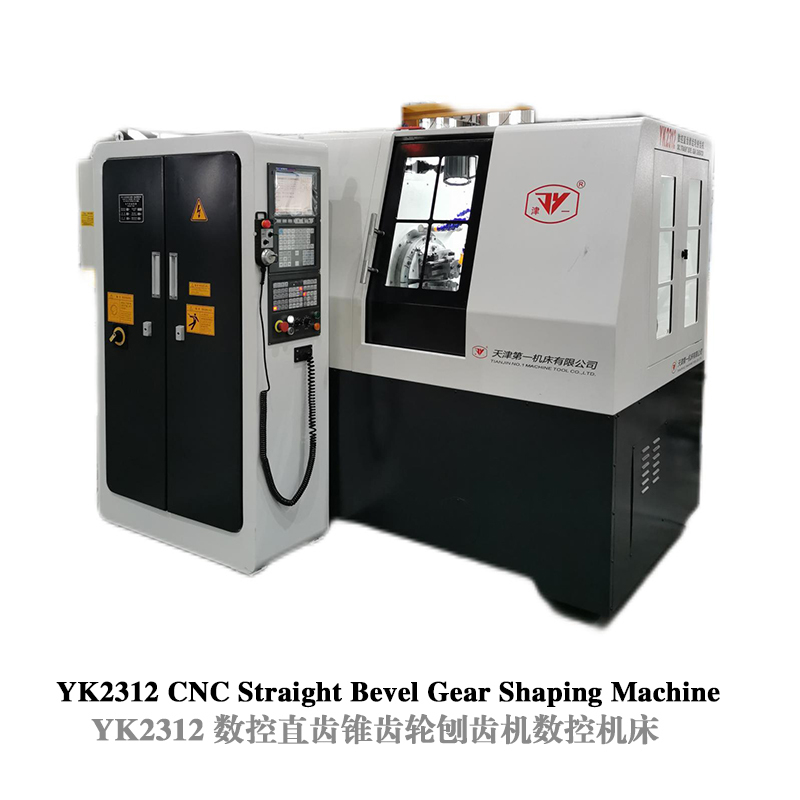

YK2312 CNC Straight Bevel Gear Shaper CNC Machine Tool

Main Technical Specifications of the Machine Tool

(I) Dimensions of the Workpiece to be Machined
Maximum machining module: 2.5 mm
Maximum pitch cone generatrix length: 63 mm
Maximum pitch diameter (transmission ratio 10:1): 125 mm
Root cone angle: maximum 90°, minimum 4°
Maximum transmission ratio (when the shaft angle is 90°): 10:1 (ratio)
Maximum tooth height: 5.5 mm
Maximum width of gear ring: 20 mm
Number of teeth to be machined: 5 - 150 teeth
(II) Workpiece Spindle
Large - end diameter of spindle taper hole: Φ31.267 mm
Taper: Morse No. 4 (ratio)
Taper length: 80 mm
Diameter of spindle through - hole: Φ20H11 mm
Distance from the spindle end face to the center of the machine tool: 30 - 190 mm
(III) Cradle Tool Post
Adjustment angle of the cradle tool post: 360° (degree)
Maximum swing angle of the cradle tool post: 80° (degree)
Maximum positioning angle of the tool post seat: 8° (degree)
Maximum stroke of the tool: 28 mm
Over - travel of the tool: 3 mm at the small end of the tooth; 5 mm at the large end of the tooth
(IV) Tool
GR83 - 60I type straight bevel gear shaper cutter
Reciprocating strokes per minute of the shaper cutter: 250 - 700 Stroke/min
(V) Main Machine Voltage
Voltage: 380 v
(VI) Net Weight of the Machine Tool
Net weight: 1.8 t
(VII) Overall Dimensions of the Machine Tool
Dimensions: 1700×1650×1700 mm
