Grundfos 50 Hz Stainless Steel Electric Submersible Anti-Rast Deep Well Pump

Name: Grundfos 50 Hz Stainless Steel Electric Submersible Anti-Rast Deep Well Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: SP 3A-45
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: SG

Brand Name: Grundfos

Model Number: SP 3A-45

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:

Liquids To Be Conveyed:	Water	Liquid Temperature Range:	-15 .. 40 °C
Liquid Temperature During Operation:	20 °C	Density:	998.2 Kg/m³
Power Frequency:	50 Hz	Rated Voltage:	3 X 380-400-415 V
Net Weight:	37.6 Kg	Gross Weight:	42.9 Kg

Liquids To Be Conveyed:	Water
Liquid Temperature Range:	-15 .. 40 °C
Liquid Temperature During Operation:	20 °C
Density:	998.2 Kg/m³
Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V
Net Weight:	37.6 Kg
Gross Weight:	42.9 Kg

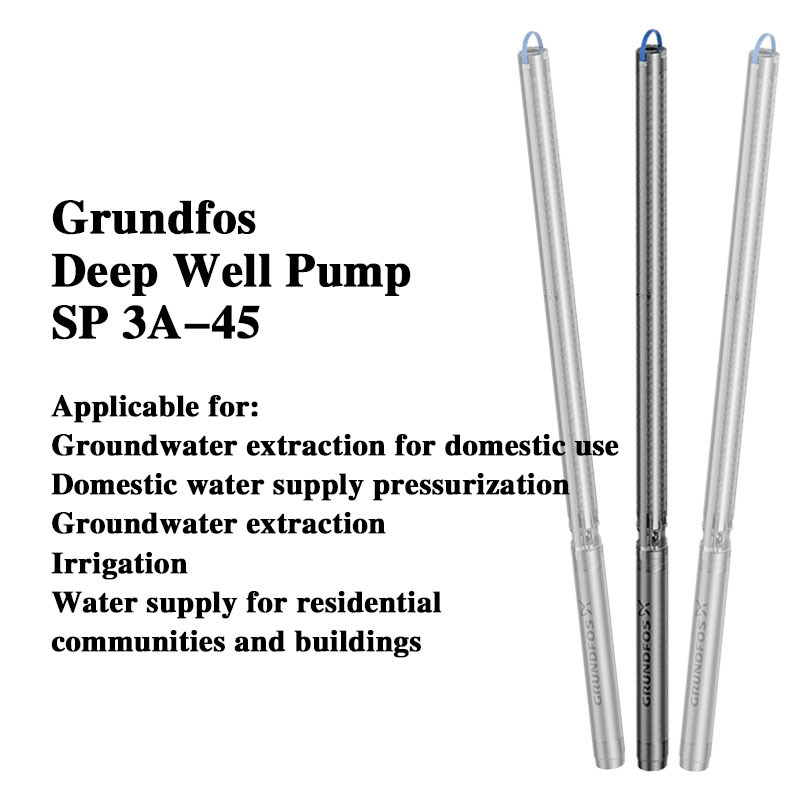

Grundfos 50 Hz Stainless Steel Electric Submersible Anti-Rast Deep Well Pump

Deep Well Pump
SP 3A-45
Serial Number: 10101945

Applicable for:

Groundwater extraction for domestic use
Domestic water supply pressurization
Groundwater extraction
Irrigation
Water supply for residential communities and buildings

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

SP 3A-45
It is a submersible deep well pump suitable for conveying clean water. It can be installed either vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4301 (AISI 304), which ensures high corrosion resistance. This pump has drinking water approval.

Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 3 m³/h
Rated head: 210 meters
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Motor certifications: CE, EAC, C_UL_US_NSF372MOROCCO, UKCA, SEPRO, RCM
Drinking water certifications: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES
Shaft end specification: CYLINDRICAL

Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
EN 1.4301
Shaft seal: HM/Ceramics

Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 28.9 bar
Interface type: Rp
Connection size: 1 1/4 inch
Motor diameter: 4 inch
Minimum borehole diameter: 105 mm

Electrical data:
Motor type: MS4000
Motor flange design: Grundfos
Rated power - P2: 3 kW
Power required by the pump (P2): 3 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 7.7-7.9-8.1 A
Starting current: 430-450-460 %
Cos phi - Power factor: 0.86-0.81-0.77
Rated speed: 2830-2850-2870 revolutions per minute
Starting method: Direct-on-line (DOL)
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Self-protection standard: NONE
Thermal protection: External
Built-in temperature conductor: No
Cable length: 2.5 meters
Cable type: FLAT
Motor number: 7C192508
Windings: Enameled

Others:
Minimum energy efficiency index, MEI ≥: 0.70
Net weight: 33.3 kg
Gross weight: 38.6 kg
Transport volume: 0.04 m³
Place of origin: SG
