Grundfos Energy Saving High Head Agricultural Stainless Steel Impeller Submersible Deep Well Pump

Name: Grundfos Energy Saving High Head Agricultural Stainless Steel Impeller Submersible Deep Well Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: SP 46-24
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: Grundfos

Model Number: SP 46-24

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Agricultural Submersible Deep Well Pump, High Head Submersible Well Pump, Grundfos Submersible Deep Well Pump


Liquids To Be Conveyed:	Water	Liquid Temperature Range:	-15 .. 50 °C
Liquid Temperature During Operation:	20 °C	Max Liquid T At 0.5 M/sec:	50 °C
Density:	998.2 Kg/m³	Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V	Net Weight:	183 Kg
Gross Weight:	238 Kg	Rated Flow:	46 M³/h
Rated Head:	211 M	Maximum Ambient Pressure:	60 Bar
Maximum Operating Pressure:	60 Bar

Liquids To Be Conveyed:	Water
Liquid Temperature Range:	-15 .. 50 °C
Liquid Temperature During Operation:	20 °C
Max Liquid T At 0.5 M/sec:	50 °C
Density:	998.2 Kg/m³
Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V
Net Weight:	183 Kg
Gross Weight:	238 Kg
Rated Flow:	46 M³/h
Rated Head:	211 M
Maximum Ambient Pressure:	60 Bar
Maximum Operating Pressure:	60 Bar

Grundfos Energy Saving High Head Agricultural Stainless Steel Impeller Submersible Deep Well Pump

Deep Well Pump
SP 46-24
Serial Number: 15a04424

Applicable for:

Extraction of groundwater for domestic use
Pressure boosting for domestic water supply
Groundwater extraction
Irrigation
Water supply for residential communities and buildings

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater, irrigation, mining, fountains, offshore operations, etc.

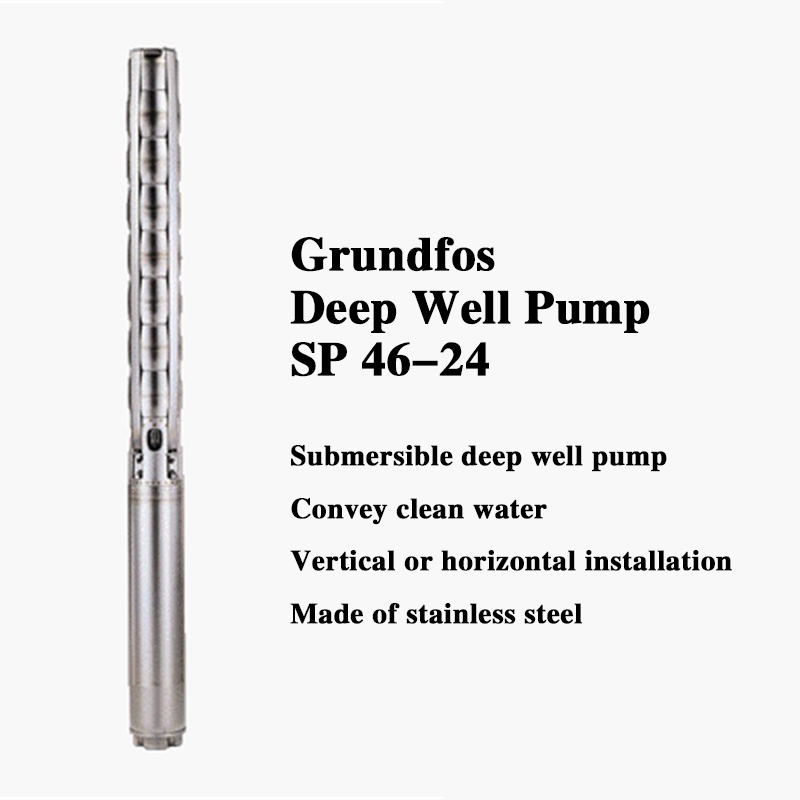

SP 46-24
It is a submersible deep well pump, suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4301 (AISI 304), ensuring high corrosion resistance. This pump has drinking water approval.

The pump is equipped with a 37kW MMS6 motor, featuring a sand shield, water-lubricated sliding bearings, and a volume compensation diaphragm. The rewound motor structure allows full access to the windings for easy rewinding. The stator windings are PE/PA insulated, suitable for continuous operation (S1). It is suitable for temperatures up to 50 °C.

A mechanical shaft seal is installed on the pump. The motor is designed for direct-on-line (DOL) starting.

Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 50 °C
Max liquid t at 0.5 m/sec: 50 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 46 m³/h
Rated head: 211 meters
Motor shaft seal: CER/CARBON
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Drinking water certification: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T50
Return valve: YES

Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Cast iron
DIN W.-Nr. 0.6025
ASTM Class 35-40

Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 32.8 bar
Interface type: Rp
Connection size: 4 inch
Motor diameter: 6 inch
Minimum borehole diameter: 155 mm

Electrical data:
Motor model: MMS6
Motor flange design: Grundfos
Rated power - P2: 37 kW
Power required by the pump (P2): 37 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Safety factor: 1.00
Rated current: 87-85-85 A
Starting current: 455-495-510 %
Cos phi - Power factor: 0.85-0.82-0.79
Rated speed: 2830-2860-2870 revolutions per minute
Starting method: Direct start
Enclosure class (IEC 34-5): IP68
Motor number: 96879412
Windings: PE2/PA

Others:
Minimum energy efficiency index, MEI ≥: 0.40
Net weight: 183 kg
Gross weight: 238 kg
Transport volume: 0.496 m³

Grundfos Energy Saving High Head Agricultural Stainless Steel Impeller Submersible Deep Well Pump 2

Grundfos Energy Saving High Head Agricultural Stainless Steel Impeller Submersible Deep Well Pump 3
