High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply

Name: High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: SP 95-20 N
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: AU

Brand Name: Grundfos

Model Number: SP 95-20 N

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Deep Well Pump, SP Deep Well Pump, High Efficiency Deep Well Pump


Liquids To Be Conveyed:	Water	Liquid Temperature Range:	-15 .. 45 °C
Liquid Temperature During Operation:	20 °C	Maximum Fluid Temperature At 0.15 M/Sec:	40 °c
Max Liquid T At 0.5 M/Sec:	45 °c	Density:	998.2 Kg/m³
Power Frequency:	50 Hz	Rated Voltage:	3 X 380-400-415 V
Net Weight:	401 Kg	Gross Weight:	498 Kg
Rated Flow:	95 M³/h	Rated Head:	245 M
Maximum Ambient Pressure:	60 Bar	Maximum Operating Pressure:	42.9 Bar

Liquids To Be Conveyed:	Water
Liquid Temperature Range:	-15 .. 45 °C
Liquid Temperature During Operation:	20 °C
Maximum Fluid Temperature At 0.15 M/Sec:	40 °c
Max Liquid T At 0.5 M/Sec:	45 °c
Density:	998.2 Kg/m³
Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V
Net Weight:	401 Kg
Gross Weight:	498 Kg
Rated Flow:	95 M³/h
Rated Head:	245 M
Maximum Ambient Pressure:	60 Bar
Maximum Operating Pressure:	42.9 Bar

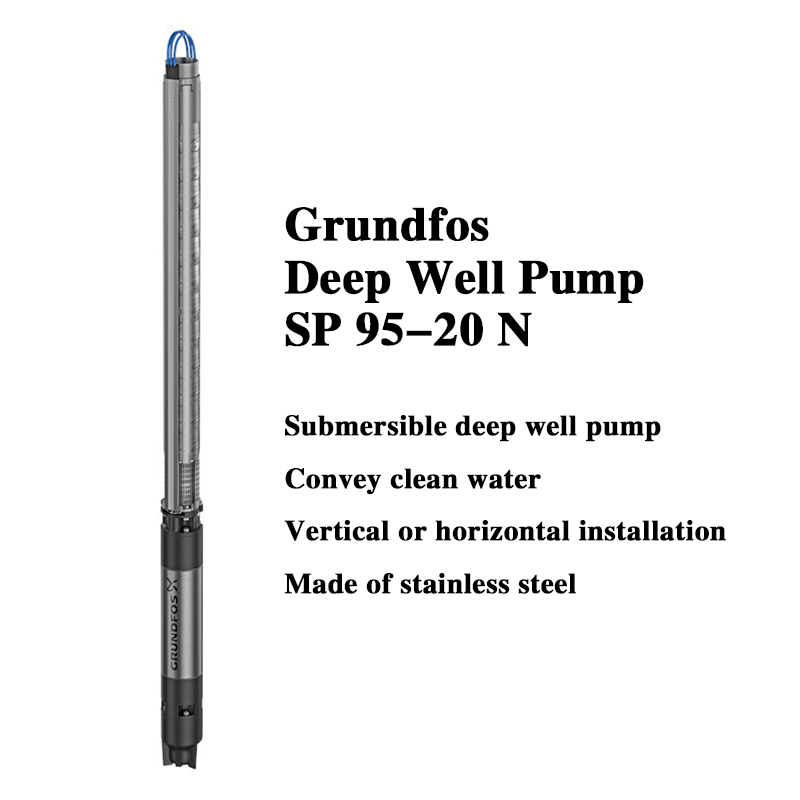

High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply

Deep Well Pump
SP 95-20 N
Serial Number: 19500320

Applicable for:

Extraction of groundwater for domestic use
Pressure boosting for domestic water supply
Groundwater extraction
Irrigation
Water supply for residential communities and buildings

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

SP 95-20 N
It is a submersible deep well pump suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4401 (AISI 316), ensuring high corrosion resistance.

The pump is equipped with a 92kW MMS8000 motor, featuring a sand shield, water-lubricated sliding bearings, and a volume compensation diaphragm. The rewound motor structure allows full access to the windings for easy rewinding. The stator windings are PE/PA insulated and suitable for continuous operation (S1). It is suitable for temperatures up to 50 °C.

A mechanical shaft seal is installed on the pump. The motor is not fitted with a temperature sensor. If temperature monitoring is required, a Pt100 or Pt1000 sensor can be installed. The motor is designed for direct-on-line (DOL) starting.

Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 45 °C
Maximum fluid temperature at 0.15 m/sec: 40 °C
Max liquid t at 0.5 m/sec: 45 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 95 m³/h
Rated head: 243 meters
Motor shaft seal: SIC/SIC
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Curve tolerance: ISO9906:2012 3B
Motor version: T45
Return valve: YES

Materials:
Pump: Stainless steel
EN 1.4401
AISI 316
Impeller: Stainless steel
EN 1.4401
AISI 316
Motor: Stainless steel
DIN W.-Nr. 1.4401
AISI 316

Installation:
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 42.9 bar
Interface type: Rp
Connection size: 5 inch
Motor diameter: 8 inch
Minimum borehole diameter: 206 mm

Electrical data:
Motor model: MMS8000
Motor flange design: Grundfos
Rated power - P2: 92 kW
Power required by the pump (P2): 92 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 194-186-186 A
Starting current: 520-590-620 %
Cos phi - Power factor: 0.88-0.86-0.83
Rated speed: 2870-2890-2890 revolutions per minute
Starting method: Direct start
Enclosure class (IEC 34-5): IP68
Built-in temperature conductor: No
Motor number: 96530100
Windings: PE2/PA

Others:
Net weight: 401 kg
Gross weight: 498 kg
Transport volume: 0.784 m³

High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply 1

High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply 2

High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply 3
