6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump

Name: 6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: SP 125-17
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: AU

Brand Name: Grundfos

Model Number: SP 125-17

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                6 Inch Anti Sand Well Pump, Submersible Borehole Deep Well Pump, Stainless Steel submersible well pumps


Liquids To Be Conveyed:	Water	Liquid Temperature Range:	-15 .. 40 °C
Liquid Temperature During Operation:	20 °C	Max Liquid T At 0.5 M/sec:	40 °C
Density:	998.2 Kg/m³	Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V	Net Weight:	703 Kg
Gross Weight:	808 Kg	Rated Flow:	125m³/h
Rated Head:	348 M	Maximum Ambient Pressure:	60 Bar
Maximum Operating Pressure:	50.2 Bar

Liquids To Be Conveyed:	Water
Liquid Temperature Range:	-15 .. 40 °C
Liquid Temperature During Operation:	20 °C
Max Liquid T At 0.5 M/sec:	40 °C
Density:	998.2 Kg/m³
Power Frequency:	50 Hz
Rated Voltage:	3 X 380-400-415 V
Net Weight:	703 Kg
Gross Weight:	808 Kg
Rated Flow:	125m³/h
Rated Head:	348 M
Maximum Ambient Pressure:	60 Bar
Maximum Operating Pressure:	50.2 Bar

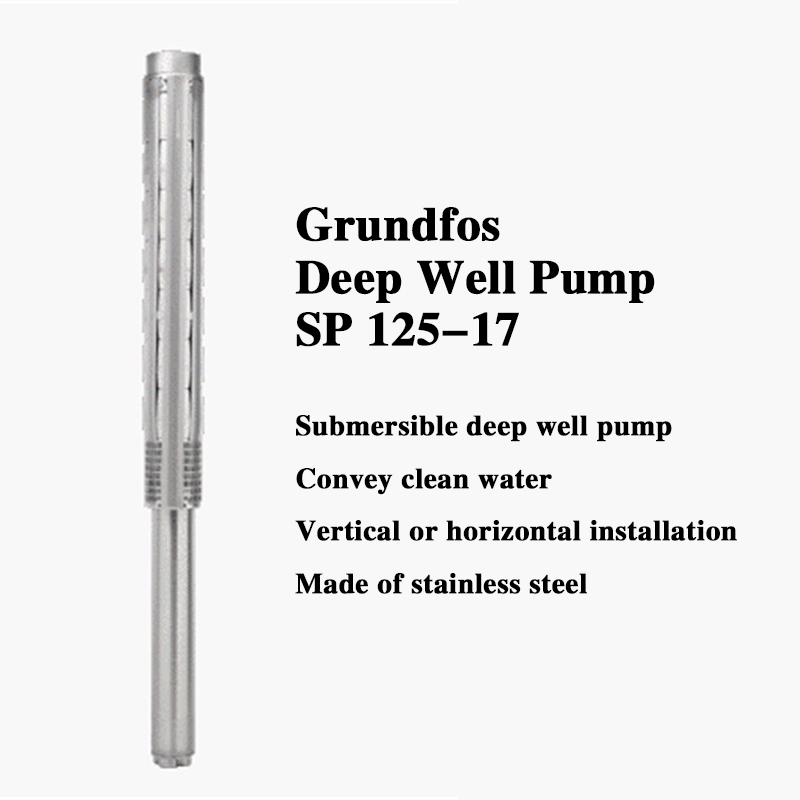

6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump

Deep Well Pump
SP 125-17
Serial Number: 17ak0617

Applicable for:

Extraction of groundwater for domestic use
Pressure boosting for domestic water supply
Groundwater extraction

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

SP 125-17
It is a submersible deep well pump suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, specifically EN 1.4301 (AISI 304), ensuring high corrosion resistance. This pump has drinking water approval.

The pump is equipped with a 170kW MMS10000 motor, featuring a sand shield, water-lubricated sliding bearings, and a volume compensation diaphragm. The rewindable motor structure allows full access to the windings for easy rewinding. The stator windings are PE/PA insulated and suitable for continuous operation (S1). It is suitable for temperatures up to 50 °C.

A mechanical shaft seal is installed on the pump. The motor is not fitted with a temperature sensor. If temperature monitoring is required, a Pt100 or Pt1000 sensor can be installed. The motor is designed for direct-on-line (DOL) starting.

Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Maximum fluid temperature at 0.15 m/sec: 35 °C
Max liquid t at 0.5 m/sec: 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 125 m³/h
Rated head: 348 meters
Motor shaft seal: CER/CARBON
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Drinking water certification: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES

Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Cast iron
DIN W.-Nr. 0.6025
ASTM Class 35-40

Installation:
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 50.2 bar
Interface type: Rp
Connection size: 6 inch
Motor diameter: 10 inch

Electrical data:
Motor model: MMS10000
Motor flange design: Grundfos
Rated power - P2: 170 kW
Power required by the pump (P2): 170 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 365-365-375 A
Starting current: 570-600-600 %
Cos phi - Power factor: 0.85-0.81-0.77
Rated speed: 2910-2920-2930 revolutions per minute
Starting method: Direct start
Enclosure class (IEC 34-5): IP68
Built-in temperature conductor: No
Motor number: 96438116
Windings: PE2/PA

Others:
Net weight: 703 kg
Gross weight: 808 kg
Transport volume: 1.54 m³
Place of origin: AU

6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump 2

6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump 3

6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump 4
