High-Efficiency Heat Exchange of Plate & Shell Heat Exchangers

Products

High-Efficiency Heat Exchange of Plate & Shell Heat Exchangers

MOQ:	1
Price:	Negotiable
Standard Packaging:	Wooden box
Delivery Period:	5-8 Work days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	100

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Botai

Model Number

P61103-104848

Delivery Time:

10 Working Days

Origio:

Tian Jin, China

Productioncapacity:

100000pieces/Year

Design Pressure:

2.2m/PA

Material Type:

SS304/SS316L

Highlight:

high-efficiency plate heat exchanger

shell heat exchanger with warranty

industrial heat exchange equipment

Product Description

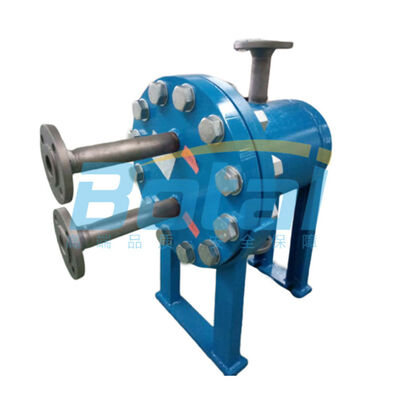

High-Efficiency Plate & Shell Heat Exchanger

The P61103-104848 Plate & Shell Heat Exchanger combines the advantages of plate heat exchangers and shell-and-tube heat exchangers. Featuring a fully welded process and corrugated plate bundle core structure, it withstands high temperature, high pressure, and variable load conditions across multiple industries, serving as core equipment for heat exchange and energy recovery.

Core Structure and Working Principle

This heat exchanger utilizes a plasma-welded corrugated plate pack as the core heat transfer element, replacing traditional tube bundles. The fully welded process eliminates rubber gaskets, ensuring hermetic isolation. Hot and cold fluids flow countercurrently through independent channels, with corrugated plates enabling high thermal conductivity and turbulence-enhanced heat transfer with minimum temperature difference of 1ºC.

Core Product Advantages

High Temperature and High Pressure Resistance - Designed for harsh working conditions
High Efficiency and Compactness - Superior heat transfer in minimal space
Stable Heat Exchange - Consistent performance under variable load conditions
Safe and Reliable - Long service life with proven durability
Low Pressure Loss - Excellent energy efficiency and operational economy

Application Fields

With excellent heat exchange performance and condition adaptability, this product serves multiple industrial processes including heating, cooling, evaporation, condensation, and waste heat recovery:

Refrigeration Industry - Ammonia refrigeration economizers, evaporators, condensers for CO₂ systems
Chemical Industry - Ammonia water dilution, synthetic ammonia, LNG, DMP cooling heat exchange
Coal Chemical Industry - Phase change processes, temperature/pressure swing adsorption, tar/kerosene cooling
Food and Beverage Industry - Sugar production, beer cooling, beverage low-temperature treatment
Energy/Petrochemical/Shipbuilding - Steam condensation, crude oil heating/cooling, marine oil coolers
Pharmaceutical/Metallurgical Industry - Solvent condensers, reactor temperature control, process media heat exchange

Core Product Features

Process - Plasma laser welding, fully sealed gasket-free design
Material - High-quality corrosion-resistant plates with high-strength shell, customizable material selection
Operation - Low pressure drop, minimal retained liquid, suitable for continuous variable load operation
Maintenance - Simple structure, reduced scaling, low maintenance costs, quick overhaul capability
