WEG WG20 Series Gear Motor High‑efficiency Modular Industrial Gear Motor

MOQ: 1
Price: Negotiable
Standard Packaging: Wooden Case / Plywood Case Export Packaging
Delivery Period: 5‑8 working days, negotiable
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
WEG
Certification
CE，CCC
Model Number
WG20
Document
WG20 geared motor.pdf
Rated Torque:
50 ~ 18000 Nm
Power Range:
0.12‑75 KW
Gear Stages:
2‑5 Stages
Motor Efficiency Class:
IE2 / IE3 / IE4
Protection Class:
IP55
Insulation Class:
Class F
Lubrication & Maintenance:
Lifetime Maintenance‑free Under Normal Operation ≤600 Nm
Motor Frame Sizes:
Aluminium Frame: 63‑200; Cast‑iron Frame: 225‑250
Highlight:

WEG WG20 gear motor

,

modular industrial gear motor

,

high-efficiency gear motor

Product Description
WEG WG20 Modular Helical Geared Motor Overview

The WEG WG20 Series is a high-efficiency modular industrial gear motor that integrates the drive motor and multi-stage speed-reduction gearing in a single unit, lowering output speed while boosting torque. It is available in coaxial (C), parallel-shaft (F) and right-angle helical-bevel (K) configurations with a wide choice of mounting options for direct drop-in replacement.

Die-cast aluminium or monobloc cast-iron housings deliver effective heat dissipation, and models rated up to 600 Nm are lifetime maintenance-free under standard operating conditions. The platform is compatible with wide-range multi-voltage windings and inverter operation, and supports optional brakes, encoders, forced cooling and backstops. Low-noise running and high overload resistance make the WG20 ideal for conveyors, mixers, hoists, packaging lines and other industrial machinery.

Technical Specifications
Product Series WG20 (C – Coaxial, F – Parallel Shaft, K – Right-Angle)
Rated Torque 50 ~ 18000 Nm
Power Range 0.12 – 75 kW
Gear Stages 2 – 5 stages
Motor Efficiency Class IE2 / IE3 / IE4
Protection Class IP55
Insulation Class Class F
Housing Material Die-cast aluminium housing ≤600 Nm; monobloc cast-iron housing ≥800 Nm
Lubrication & Maintenance Lifetime maintenance-free under normal operation ≤600 Nm
Mounting Types Foot-mounted, flange-mounted, solid shaft, hollow shaft, shrink disc, torque arm (K-series)
Certifications CE, CCC (frame size 63–90)
Voltage Wide-range multi-voltage winding for global applications; inverter operation up to 460 V
Motor Frame Sizes Aluminium frame: 63–200; cast-iron frame: 225–250
Series Brief Specifications
  1. C-Series Coaxial Helical Gear Motor: 12 models, torque 50–18000 Nm, ratio range 2.44–22405.25, foot / flange / solid-shaft mounting.
  2. F-Series Parallel-Shaft Helical Gear Motor: 11 models, torque 130–18000 Nm, ratio range 3.85–24805.81, hollow-shaft and shrink-disc options, ideal for conveyors.
  3. K-Series Right-Angle Helical-Bevel Gear Motor: 11 models, torque 110–18000 Nm, ratio range 3.82–14005.40, torque-arm mounting available for offset drive applications.
Key Advantages
High Efficiency Multi-stage helical gearing delivers a wide ratio range and high transmission efficiency. By suitably lowering the peripheral speed of the input pinion and optimizing the oil fill to cut churning losses, gear life is extended. Under normal operating conditions, gear motors up to 600 Nm are lifetime maintenance-free.
Market Standard – Direct Drop-in Replacement Key mounting dimensions follow common market standards, enabling direct replacement. The WG20 series is highly versatile and can be easily integrated into existing systems as a like-for-like replacement or upgrade.
Low Noise WG20 gearboxes run quietly and smoothly. Near-complete in-house production ensures perfect mating of high-quality components. Precision gear design and the relatively low peripheral speed of the input pinion both reduce operating noise.
Robust & Reliable Housing Units up to 600 Nm use a die-cast aluminium housing for excellent heat dissipation and light weight; sizes from 800 Nm use a monobloc cast-iron housing. Finite-element optimized tooth profiles raise the root-bending safety factor for high overload resistance and long-term stability.
Flexible Modularity & Global Compatibility Modular platform supports optional spring brakes, forced cooling, encoders and backstops. Wide-range windings adapt to global voltages by re-terminating; frames ≤180 support 100 Hz inverter duty for doubled power without torque loss. Frame ≥225 uses the proven W21 cast-iron motor.
Convenient Selection with Digital Tools The cat4CAD® configuration tool enables fast product selection; users can generate 2D/3D CAD drawings and PDF datasheets and export project files to simplify engineering design and quotation workflows.
Product Gallery

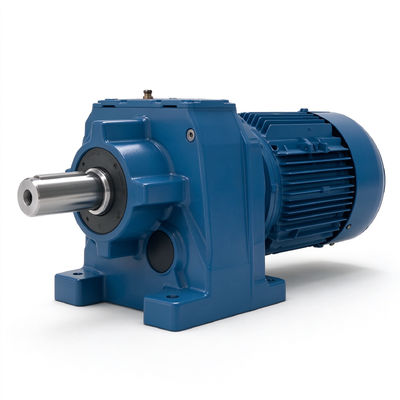

WEG WG20 coaxial helical gear motor with die-cast aluminium housing
WEG WG20 parallel-shaft helical gear motor with hollow shaft output
WEG WG20 right-angle helical-bevel gear motor with torque arm mounting
Typical Application Fields
  • C-Series (Coaxial): Wood-working machinery, packaging machines, pumps, bakery equipment, lifts and elevators, textile machinery.
  • F-Series (Parallel Shaft): Belt conveyors, screw conveyors, waste-treatment and recycling plants, mixing and agitation equipment, stacking equipment, hoisting machinery.
  • K-Series (Right-Angle): Roller tables, winches and hoists, crushers, concrete mixers, baggage handling systems, stage lifting equipment.
WEG WG20 gear motor installed on an industrial conveyor system
WEG WG20 gear motor driving mixing and agitation equipment
WEG WG20 right-angle gear motor used in a hoisting application
