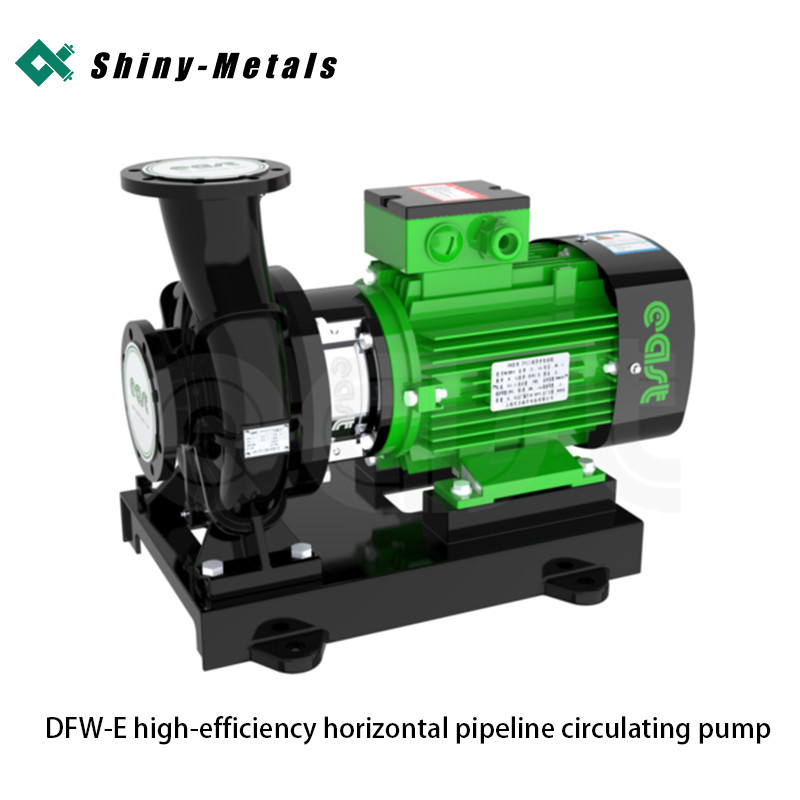

EAST Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump

Product Details

Place of Origin: China

Brand Name: EAST

Model Number: Dfw-E

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ,Off Season Lead Time: 1 month

Get Best Price
Highlight:

Custom drainlift sani l 11t 4

,

Sewage Pumping drainlift sani l 11t 4

,

Sewage Pumping drainlift box

Flow Range:
2 - 1400 M³/H
Head Range:
5 - 130 M
The Maximum Working Pressure Of The Pump:
≤ 1.6MPa
Medium Temperature:
-15ºC < T ≤ +80ºC. For The Hot - Wate
Ambient Temperature:
≤ 40ºC
Motor Insulation Class:
Class B Or Class F
Motor Protection Class:
IP54 Or IP55
Flow Range:
2 - 1400 M³/H
Head Range:
5 - 130 M
The Maximum Working Pressure Of The Pump:
≤ 1.6MPa
Medium Temperature:
-15ºC < T ≤ +80ºC. For The Hot - Wate
Ambient Temperature:
≤ 40ºC
Motor Insulation Class:
Class B Or Class F
Motor Protection Class:
IP54 Or IP55
EAST Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump

DFW-E Structure Diagram

  • In the DFW series horizontal centrifugal pumps, the direct connection between the motor and the pump simplifies the intermediate transmission structure. The co - axial arrangement of the pump and the motor results in low vibration and noise, enhancing the operational stability. Moreover, compared with ordinary horizontal pumps, it reduces the floor space by 30%, occupying less space.
high reliability

Use of B35 - mounted Extended - Shaft Motor

The DFW series horizontal centrifugal pumps use a B35 - mounted extended - shaft motor directly connected to the pump, which simplifies the intermediate transmission structure. With the pump and the motor on the same axis, it features low vibration, low noise, and smoother operation.
EAST  Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump 0


Diversity of Mechanical Seals

  • The shaft seals of DFW series horizontal centrifugal pumps adopt mechanical seals, which have small leakage and long service life. You can choose MG1 or 120 series mechanical seals, and select the material of mechanical seals according to the application scenarios.
  • Materials for dynamic and static rings: Graphite, silicon carbide, tungsten carbide, aluminum oxide.
  • Materials for auxiliary sealing elements: Nitrile rubber, fluororubber, ethylene - propylene rubber, silicone rubber, fully - coated FEP, fully - coated PFA.
  • Materials for springs and other structural components: 06Cr17Ni12Mo2Ti(G), 06Cr19Ni10 (F), Hast.C4(2.4610) (M), X2CrNiMoN22 - 5 - 3 (G1).
EAST  Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump 1

Reinforcing Ribs in Pump Body Design

  • Under normal wall - thickness conditions, reinforcing ribs are designed in the pump body. This increases the strength and rigidity of the pump body. Meanwhile, it can overcome the casting deformation caused by uneven stress due to the different structural forms and varying thicknesses in different parts of the pump body. As a result, it improves the quality of casting products and enhances the overall product quality.
EAST  Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump 2


High - Efficiency and Energy - Saving

  • The product quality of DFW series horizontal centrifugal pumps complies with the standard GB/T5657 "Technical Conditions for Centrifugal Pumps (Class II)". It keeps improving on the original basis, applying the latest achievements in hydraulic research. Through the three - dimensional design theory and model - based performance analysis methods for pumps, it maximally expands the high - efficiency area of the pump and broadens the high - efficiency range.
    The hydraulic model of the impeller is perfectly matched with the flow passage of the pump body, improving the pump's efficiency. The uniquely designed hydraulic model of the impeller significantly enhances the overall operation efficiency of the pump, ensuring reliable operation under variable working conditions.


EAST  Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump 3EAST  Dfw-E High-Efficiency Horizontal Pipeline Circulating Pump 4
