CNC straight bevel gear milling machine for machining precision machinery

Name: CNC straight bevel gear milling machine for machining precision machinery
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: YK2212B
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: GENERTEC

Model Number: YK2212B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 8-8 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months， Off Season Lead Time: 1-3 months

Get Best Price

Product Details

Product Description

Highlight:

Maximum Machining Module:	2.5 Mm	Max.Workpiece Dia.:	120 Mm
Maximum Transmission Ratio:	10 :1	Max,Face Width:	11 Mm
Cutter Size:	6"(152.4mm)	Machine Weight:	2000kg

Maximum Machining Module:	2.5 Mm
Max.Workpiece Dia.:	120 Mm
Maximum Transmission Ratio:	10 :1
Max,Face Width:	11 Mm
Cutter Size:	6"(152.4mm)
Machine Weight:	2000kg

CNC straight bevel gear milling machine for machining precision machinery

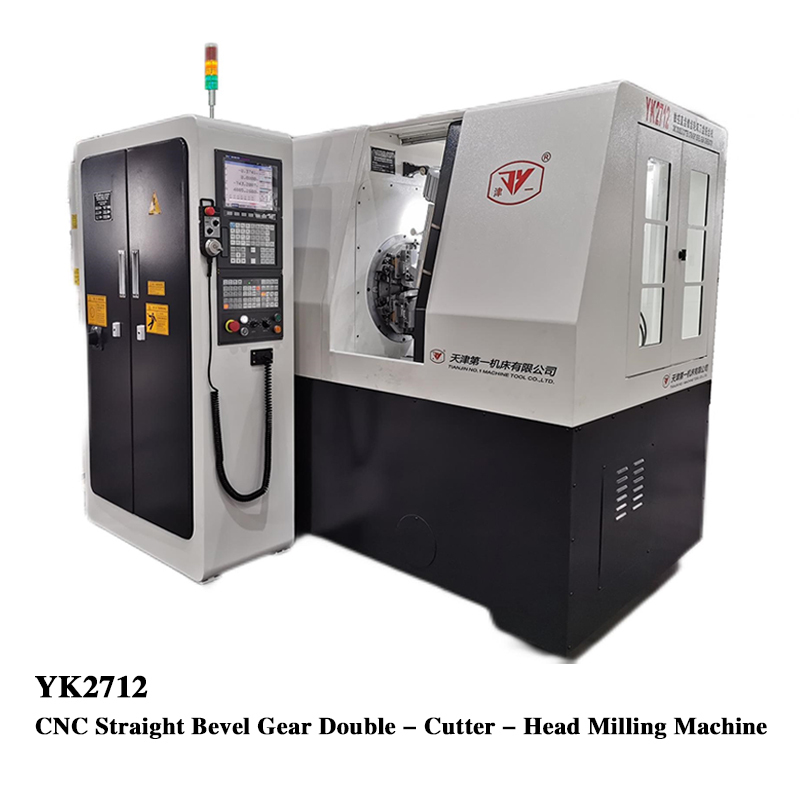

YK2712 CNC Straight Bevel Gear Double - Cutter - Head Milling Machine

It is particularly suitable for machining teeth with drum-shaped tooth direction, and is used for rough cutting and finish cutting of straight bevel gears. The machining efficiency is high, about 3-5 times higher than that of a gear shaping machine of the same specification, and the noise is low. The machining accuracy of the machine tool reaches GB Grade 6.

This machine tool is suitable for machining gearboxes, reducers, precision transmission gears, etc. with straight bevel gear transmission.

Main Performance and Structural Characteristics of the Machine Tool

1.The machine tool is equipped with domestic GSK218MC-V CNC system by Guangshu. According to customer needs, German SIEMENS or Japanese FANUC CNC systems and motors can be used to achieve four-axis control and three-axis linkage. The spindle servo motor controls stepless speed regulation of the cutter shaft main drive, enabling electronic handwheel tool setting and auxiliary tool adjustment.
2.The double-cutter-head support component of the machine tool features a unique structural layout, ensuring reasonable spatial dimensions under high rigidity.
3.Both the oscillating table and workpiece box of the machine tool adopt high-precision worm gear transmission, with high-rigidity design for both structure and transmission.
4.Main electrical components, bearings, and seals of the machine tool are all imported to ensure its reliability.
5.The machine tool is equipped with an independent sealed electrical cabinet with a constant temperature control device.
6.The machine tool is equipped with a safety protective cover.
7.The machine tool is equipped with a chip discharger (optional).

Main Specifications (Custom configurations available upon request.)
Items	Unit	YK2632 Gear Grinder
Maximum Machining Module (Module)	mm	8
Maximum Pitch Diameter (Max.Workpiece Dia.)	mm	320
Maximum Transmission Ratio (When the Shaft Angle is 90°) (Max.Ratio)	-	10:1
Maximum Machined Tooth Width (Max.Face Width)	mm	50
Grinding Wheel Size (Grinding Wheel Size)	mm	250
Net Weight of Machine Tool (Machine Weight)	kg	6500

Items	Unit	YK2312	YKM2350
Maximum Machining Module (Module)	mm	2.5	10
Maximum Pitch Diameter (Max. Workpiece Dia.)	mm	120	500
Maximum Transmission Ratio (When the Shaft Angle is 90°) (Max. Ratio)	-	10:1	8:1
Maximum Machined Tooth Width (Max. Face Width)	mm	20	85
Net Weight of Machine Tool (Machine Weight)	kg	1800	6000

Specifications
Max. module of work	mm	2.5–0.5
Max. cone distance of work	mm	60
Extreme ratio (at 90º shaft angle)		10:1
Max. diameter of work	mm	125
Max. face width of work	mm	11
Teeth number		5 --150
Max. adjusting angle of cutter head		±7.5º
Distance between face of work spindle and machine center	mm	20 --190
Time for cutting one tooth	s	4 --20
Cutting speed	m/min.	40 --60
Diameter of taper hole of work spindle at large end	mm	31.267
Taper of work spindle hole		Morse #4
Cutter diameter		6” (152.4mm)
Max. cradle roll	above zero line	30º
Max. cradle roll	below zero line	30º
Power of main motor	kw	2.3
Speed of main motor	rpm	800 -- 1500
Power of coolant motor	kw	0.42
Flowrateof coolantpump	l/min	200
Total power of machine	kva	10
Net weight	t	2
Overall dimensions	t	1700 x 1650 x 1700

Company Profile

Genertec Tianjin No.1 Machine Tool Co., Ltd. belongs to China General Technology Group, a central enterprise.

The company was formerly known as Tianiin No.1 Machine Tool Works, one of the 18 Lohans enterprises in themachine tool industry in the early days of the founding of New China, and Tianjin Jinyi Grinding Machine Co., Ltd. ithas accumulated more than 70 years of history in the gear machine tool and grinder industry, and is the backboneenterprise in China's machine tool manufacturing industry.

Why Choose Us?

The company focuses on developing extended products in the industrial chain such as gear machining machines, special grinding machines, and precision transmission devices, and provides customers with professional comprehensive solutions for gear machining. The products are sold in 30 provinces, municipalities directly under the Central Government, and autonomous regions in China, and are exported to more than 20 countries including Germany, Spain, the United States, Sweden, Brazil, Japan, and India. It is a backbone manufacturer in China for producing complete sets of machining machines for spiral bevel gears. The company has world-class high-end precision machining and testing equipment, and an experienced R & D team and a main production force, and has passed the ISO 9001 quality management system certification.

Other Products

The leading products include: 18 major categories and more than 30 series of products such as CNC gear shapers, gear milling machines, gear broaching machines, gear grinders, gear shapers, gear lapping machines, and complete sets of bevel gear machining equipment; as well as 6 series of products including horizontal-spindle rectangular-table surface grinders, horizontal-spindle rotary-table surface grinders, vertical-spindle rotary-table surface grinders, CNC form grinders, floor-type guideway grinders, and high-precision CNC grinding centers.

FAQ

Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
