High Speed Gear Shaper for Spur Helical Gear Cutting Yk5115A

Name: High Speed Gear Shaper for Spur Helical Gear Cutting Yk5115A
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Yk5115A
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: GENERTEC

Model Number: Yk5115A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 8-8 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months， Off Season Lead Time: 1-3 months

Get Best Price

Product Details

Product Description

Highlight:

Max.Diameter Of Work(Extemal):	150 Mm	Max. Diameter Of Work (Internal):	60+Tool Diameter Mm
Max. Module Of Work:	4 Mm	Max.Face Width:	40 Mm
Number Of Strokes For Cutter Spindle:	300~1000 Str/Min	Diameter Of Cutter Spindle:	90 Mm

Max.Diameter Of Work(Extemal):	150 Mm
Max. Diameter Of Work (Internal):	60+Tool Diameter Mm
Max. Module Of Work:	4 Mm
Max.Face Width:	40 Mm
Number Of Strokes For Cutter Spindle:	300~1000 Str/Min
Diameter Of Cutter Spindle:	90 Mm

High Speed Gear Shaper for Spur Helical Gear Cutting Yk5115A

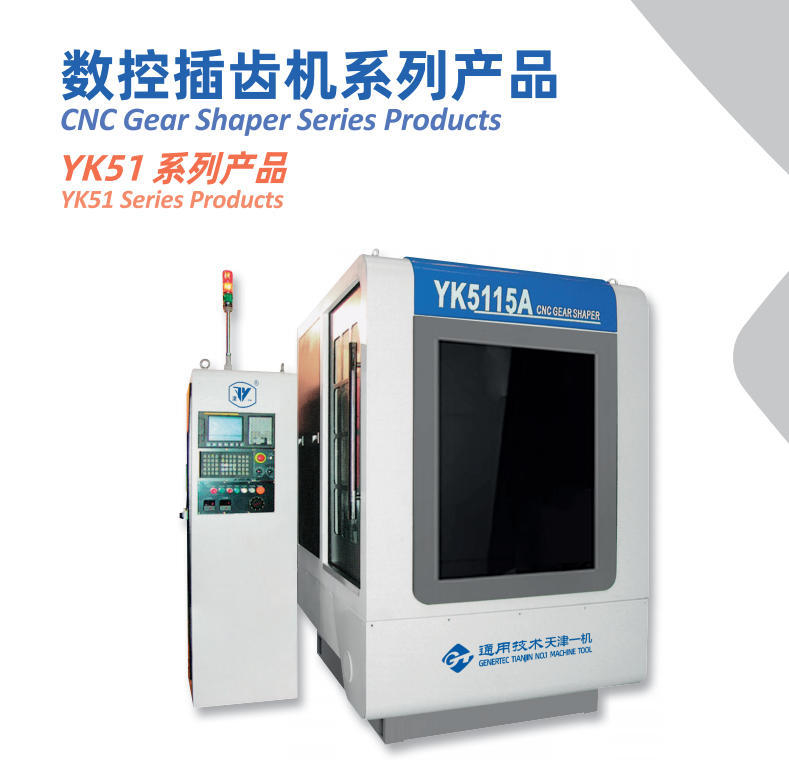

YK5115A CNC Gear Shaper

Thehigh efficiency and high precision CNC gear shapers of this series equipped with nice and environmentalprotection full enclosures adopt the longitudinal layout and their radial feed is performed by the traverse ofthe entire column. Gears of modules from 0.2mm to 10mm can be accommodated and the machiningaccuracy can reach Grade 6 of the GB Standard(GB/T10095.1-2008). Typical work-pieces such as theinternal gears in the deep holes and the cluster gears can be machined when a slide-type saddle is equippedon the machine. Non-circular gears, tri-angle-shape internal gears used in the internal gear pumps andspecial gears can be cut when special equipment is adopted for the ma-chine, or by means of use of aspecial cutting mode of great-helical rotary feed on request of the cus-tomer. You may choose machines ofdifferent model and special equipment according to the specifica-tions of gears to be cut. The machines aresuitable for the single-job or small-lot production, and preferable for the mass production on the production.

Main Features and Performance
1.Adopt the SIEMENS or FANUC system to realize four-axis three-linkage, and be equipped with a custom-developed human-machine interface.
2.The radial feeding of the column adopts high-precision ball screws, with high positioning accuracy and repeated positioning accuracy.
3.Adopt a hyperstatic double-roller tool-retracting mechanism, which can realize accurate, stable and low-noise tool-retracting movement even under high-speed strokes.
4.This series of machine tools has a complete range of models. Different models of machine tools and optional configurations can be selected according to gear parameters and characteristics, expanding the processing range of the machine tools, and completing the processing of parts such as back-tapered teeth and non-circular gears.
5.Equipped with a hydrostatic tool rest model, the maximum linear speed can reach 80m/min, realizing efficient processing.

Optional Equapment

Full-enclosure
Riser of different height (Max.500mm)

Tilt work table ( Tilt angle ±12°)

Hydrostatic saddle ( See number of strokes in the
brackets )
Helical guide (max.helical angle 30°)

Tail center equipment

Different cutter adaptors Automatic

loading and unloading Automatic

safety door
Fixtures
Oil mist exhausting device

Deburring device
Software for cutting non-circular gears

Slide-type saddle

Specifications
Model	YK5115A	YK5132C	YK5150B
Max. diameter of work
- External teeth	150 mm	320 mm	500 mm
- Internal teeth	60 + diameter of cutter mm	220 + diameter of cutter mm	Φ100 broaching cutter, 625 mm
Max. module of work	4 mm	8 mm	10 mm
Max. face width	40 mm	90 mm	130 mm
Max. Stroke length of cutter	50 mm	110 mm	150 mm
Number of strokes for cutter spindle	0 - 1000 str/min (1500)	120 - 1000 str/min	0 - 500 str/min (800)
Diameter of cutter spindle	90 mm	90 mm	90 mm
Diameter of cutter spindle journal	31.743 mm	31.743 mm	31.743 mm
Travelling position adjustment of cutter spindle	15 mm	20 mm	20 mm
Distance between bearing surface of cutter and surface of worktable	150 - 200 mm	252 - 382 mm	130 - 300 mm
Distance between cutter spindle axis and axis of work spindle	-30 - 190 mm	-115 - 290 mm	0 - 380 mm
Cutter relieving amount	≥0.5 mm	≥0.5 mm	≥0.5 mm, Bi-directional
Amount of angular cutter relieving	±20 mm	±20 mm	±30 mm
Diameter of worktable	Φ260 mm	Φ340 mm	Φ625 mm
Diameter of worktable hole	Φ100 mm	Φ120 Φ130 mm	Φ120 Φ150 mm
Number of T-slots on worktable surface	4	6	8
Radial feed of column	0.005 - 0.2 mm/str	0.01 - 0.25 mm/str	0.01 - 0.25 mm/str
Rotary feed of cutter	0.01 - 2 mm/str	0.01 - 2.5 mm/str	0.01 - 2.5 mm/str
Rapid radial feed of column	2 m/min	1.5 m/min	1 m/min
Power of main motor	7.5 kw	7.5 kw	11 kw
Total capacity	18 KVA	23 KVA	28(32) KVA
Machine weight	6.5 t	11 t	13 t
Overall dimensions	2200×1425×2440 mm	3100×1690×2430 mm	2850×1790×2670 mm

Company Profile

Genertec Tianjin No.1 Machine Tool Co., Ltd. belongs to China General Technology Group, a central enterprise.

The company was formerly known as Tianiin No.1 Machine Tool Works, one of the 18 Lohans enterprises in themachine tool industry in the early days of the founding of New China, and Tianjin Jinyi Grinding Machine Co., Ltd. ithas accumulated more than 70 years of history in the gear machine tool and grinder industry, and is the backboneenterprise in China's machine tool manufacturing industry.
