All-Welded Heat Exchanger Placa Intercambiadora De Calor

Products

All-Welded Heat Exchanger Placa Intercambiadora De Calor

MOQ:	1
Price:	Negotiable
Standard Packaging:	Wooden box
Delivery Period:	5-8 Work days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	100

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Botai

Model Number

JFW044

Delivery Time:

10 Working Days

Origio:

Tian Jin, China

Productioncapacity:

100000pieces/Year

Design Pressure:

2.2m/PA

Material Type:

SS304/SS316L

Highlight:

all-welded plate heat exchanger

intercambiadora de calor soldada

industrial welded heat exchanger

Product Description

All-Welded Heat Exchanger Placa Intercambiadora De Calor

This all-welded heat exchanger is a high-end heat exchange equipment available in model JFW044 and the MAX series. Relying on advanced all-welding technology and innovative structural design, it boasts core advantages such as high heat transfer efficiency, resistance to extreme working conditions and wide adaptability. It can fully replace traditional shell-and-tube heat exchangers and is suitable for various heat exchange process scenarios across multiple industries.

Core Structural Design

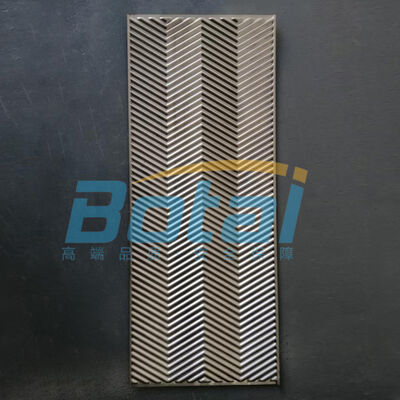

Corrugated plate base structure: It adopts the corrugated plate design of plate heat exchangers with smooth plate surfaces. The unique corrugated structure enables the fluid to generate turbulence even at a low flow rate, which greatly improves the heat transfer efficiency. Meanwhile, the smooth surface effectively reduces the scaling probability and the frequency of equipment maintenance.

All-welded sealing process: The entire plate bundle is welded and formed from the base material by argon arc welding without any non-metallic sealing materials used in the whole process. The gasket-free design fundamentally eliminates the leakage problems of traditional heat exchangers caused by gasket aging and sealing failure, ensuring more stable sealing performance.

Extreme Working Condition Resistance

The product features excellent temperature and pressure resistance performance, enabling it to adapt to various harsh operating environments. It is available in two specifications to meet diverse working condition requirements:

Model	Temperature Range	Pressure Range	Application
Basic Model (JFW044)	Up to 300°C	Up to 3.0 MPa	High temperature and high pressure demands of most industrial scenarios
MAX Series	-195°C to 538°C	Vacuum to 8.2 MPa	Parameter requirements of almost all heat exchange process occasions

Core Product Advantages

High Heat Transfer Efficiency: The low-flow turbulence design ensures a more sufficient heat exchange process. Its heat transfer efficiency is far superior to traditional shell-and-tube heat exchangers, which can effectively improve process heat exchange efficiency and reduce energy consumption.
Compact and Flexible Structure: Compared with traditional shell-and-tube heat exchangers, the equipment features a more compact size, saving installation space. It is also flexible in operation, adapting to the installation and layout requirements of different sites.
Strong Adaptability: Supports customized selection of various metals and alloy materials, and can be flexibly adjusted according to medium characteristics and working condition parameters. It is suitable for heat exchange processes in chemical, petroleum, natural gas, electric power and other industries.
Full Replacement of Traditional Equipment: With compact structure, high heat transfer performance and operational flexibility, it outperforms traditional shell-and-tube heat exchangers in all core indicators, realizing full-scenario replacement and improving the operation efficiency of the entire heat exchange system.
