High Pressure Spinning Metering Pump (≤40MPa) for Oil & Acetate Fiber Metering

Products

High Pressure Spinning Metering Pump (≤40MPa) for Oil & Acetate Fiber Metering

MOQ:	1
Price:	Negotiable
Standard Packaging:	Standard Export Plywood Case or Carton
Delivery Period:	5-8 weeks
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Detail Information

Product Description

Detail Information

Brand Name

Model Number

JRGY-1.8*6-2B

Displacement Per Outlet:

1.8 Cc/R

Structure:

1 Inlet, 6 Outlets

Mounting Screw:

Max Inlet Pressure:

≤20 MPa

Max Outlet Pressure:

≤40 MPa

Max Working Temperature:

≤320℃

Max Spinning Fluid Viscosity:

≤4000 Poise

Working Speed Range:

5~40 Rpm

Specification:

122.1 × 83.1 × 83.1mm

Highlight:

high pressure metering pump

oil metering pump with warranty

acetate fiber spinning pump

Product Description

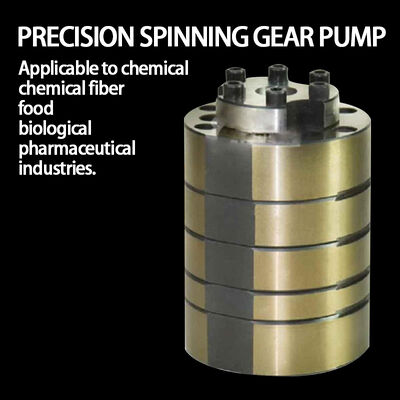

High Pressure Spinning Metering Pump (≤40MPa) for Oil & Acetate Fiber Metering

This Precision Spinning Gear Pump is a high-precision metering gear pump specially designed for chemical fiber spinning applications. It adapts to harsh conditions of high pressure, high temperature, and high viscosity melt conveying, and is widely used in spinning and metering processes across multiple industries.

Technical Specifications

Model	JRGY-1.8*6-2B
Displacement per outlet	1.8 cc/r
Structure	1 inlet, 6 outlets
Mounting Screw	M14
Max Inlet Pressure	≤20 MPa
Max Outlet Pressure	≤40 MPa
Max Working Temperature	≤320ºC
Allowable Spinning Fluid Viscosity	≤4000 POISE
Working Speed Range	5~40 rpm

Main Applications

Industries: Chemical, chemical fiber, food, biological, pharmaceutical, etc.
Applications: Spinning of polypropylene fiber, nylon, spandex, aramid, non-woven fabric, acetate fiber, and oil metering.
Core use: Spinning of polyester and nylon filament.

Product Advantages

High-efficiency Multi-position Feeding: The 1-inlet & 6-outlet design allows one pump to supply multiple spinning positions simultaneously, simplifying equipment layout and reducing per-position costs.
Stable Metering Accuracy: The gear structure ensures precise and controllable melt flow, improving the consistency of finished yarn quality.
Harsh Condition Adaptability: It can handle high-temperature, high-pressure, and high-viscosity media, meeting the conveying requirements of chemical fiber spinning melts.
Durable & Reliable: Made of high-strength materials with precision machining, it adapts to the long-term continuous operation requirements of the chemical fiber industry.

After Sales Service

Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.

Company Profile

Packaging & Shipping

Standard export wooden case packaging to protect the pump from damage during transportation.
Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.

Frequently Asked Questions

Q1: Are you a factory?

A1: We are based in Shanghai, China, start from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!

Q2: What can you buy from us?

A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q3: What is your terms of packing?

A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.

Q4: How about your delivery time?

A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.

Q5: What's your MOQ?

A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q6: How do you ensure good product quality?

A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q7: How long your quotation valid?

A7: Our quotation valid for 1 month.

Q8: Can you accept OEM brand?

A8: Yes, we can accept the OEM brand without extra charge.

Q9: How long is your product warranty?

A9: 7 days replacement and 12 months repair free of charge for quality problem.

Q10: Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings.
