High Viscosity Resistant Spinning Gear Pump 5-40rpm for Oil & Viscose Metering

Products

High Viscosity Resistant Spinning Gear Pump 5-40rpm for Oil & Viscose Metering

MOQ:	1
Price:	Negotiable
Standard Packaging:	Standard Export Plywood Case or Carton
Delivery Period:	5-8 weeks
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Detail Information

Product Description

Detail Information

Brand Name

Model Number

JRGY-1.2X4

Displacement Per Outlet:

1.2 Cc/R

Mounting Screw:

Max Inlet Pressure:

≤20 MPa

Max Outlet Pressure:

≤40 MPa

Working Speed Range:

5~40 Rpm

Specification:

105.7 × 93.7 × 93.7 Mm

Form:

1 Inlet, 4 Outlets

Displacement:

0.8~4 Cc/Rev (Per Outlet)

Working Pressure:

Inlet: ≤20MPa; Outlet: ≤40MPa

Working Temperature:

≤320℃

Spinning Fluid Viscosity:

≤4000 Poise

Highlight:

high viscosity metering pump

spinning gear pump for oil

viscose metering pump 5-40rpm

Product Description

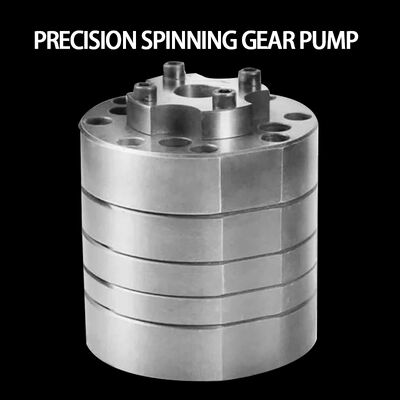

High Viscosity Resistant Spinning Gear Pump 5-40rpm for Oil & Viscose Metering

JRGY Series 1-Inlet 4-Outlet Precision Spinning Gear Pump for Polyester/Nylon Filament

This Precision Spinning Gear Pump is a high-precision metering gear pump specially designed for the chemical fiber spinning industry, enabling accurate fluid delivery and metering under harsh conditions of high pressure, high viscosity, and high temperature.

Specification	Details
Model	JRGY-1.2X4
Displacement Per Outlet	1.2 cc/r
Structure	1 inlet 4 outlets
Overall Length	105.7 mm
Width / Height	93.7 mm
Mounting Screw	M12
Inlet Pressure	≤20 MPa
Outlet Pressure	≤40 MPa
Working Temperature	≤320ºC
Applicable Viscosity	≤4000 POISE
Working Speed	5~40 rpm

Main Applications

Industries: Chemical, chemical fiber, food, biological, pharmaceutical, etc.
Applications: Spinning of polypropylene fiber, nylon, spandex, aramid, non-woven fabric, acetate fiber, and oil metering.
Core use: Spinning of polyester and nylon filament.

Product Advantages

High-efficiency Multi-position Feeding: The 1-inlet & 4-outlet design allows one pump to supply multiple spinning positions simultaneously, simplifying equipment layout and reducing per-position costs.
Stable Metering Accuracy: The gear structure ensures precise and controllable melt flow, improving the consistency of finished yarn quality.
Harsh Condition Adaptability: It can handle high-temperature, high-pressure, and high-viscosity media, meeting the conveying requirements of chemical fiber spinning melts.
Durable & Reliable: Made of high-strength materials with precision machining, it adapts to the long-term continuous operation requirements of the chemical fiber industry.

After Sales Service

Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.

Company Profile

Packaging & Shipping

Standard export wooden case packaging to protect the pump from damage during transportation.
Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.

Frequently Asked Questions

Q1: Are you a factory?

A1: We are based in Shanghai, China, start from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!

Q2: What can you buy from us?

A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q3: What is your terms of packing?

A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.

Q4: How about your delivery time?

A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.

Q5: What's your MOQ?

A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q6: How do you ensure good product quality?

A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q7: How long your quotation valid?

A7: Our quotation valid for 1 month.

Q8: Can you accept OEM brand?

A8: Yes, we can accept the OEM brand without extra charge.

Q9: How long is your product warranty?

A9: 7 days replacement and 12 months repair free of charge for quality problem.

Q10: Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings.
