Jr Series Gear Metering Pump for Staple, Polyester & Glue Coating Applications

Products

Jr Series Gear Metering Pump for Staple, Polyester & Glue Coating Applications

MOQ:	1
Price:	Negotiable
Standard Packaging:	Standard Export Plywood Case or Carton
Delivery Period:	5-8 weeks
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Detail Information

Product Description

Detail Information

Brand Name

Model Number

JR-15

Displacement (Cc/Rev):

15 Cc/Rev

Operating Speed:

10-100rpm

Inlet Pressure:

≤0~20MPa

Metering Accuracy:

±0.5%

Applicable Medium Viscosity:

0.3-30000mm²/S

Operating Temperature:

-20℃ ~ 200℃

Net Weight:

Approx. 9.0kg

Overall Dimensions (L×W×H):

143mmx90mmx122mm

Outlet Pressure:

0.8-5.5MPa

Highlight:

Jr Series metering pump for staple coating

polyester coating gear metering pump

glue application gear metering pump

Product Description

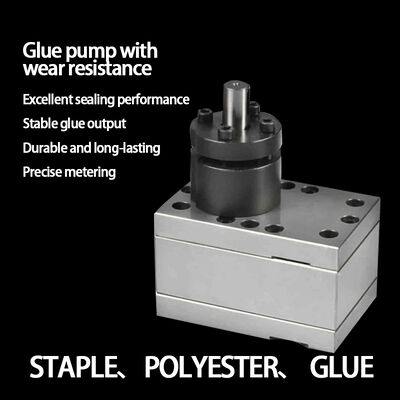

JR Series Gear Metering Pump for Staple, Polyester & Glue Coating Applications

The JR series gear metering pump is a high-precision fluid conveying equipment specifically engineered for staple fiber, polyester melt, and glue coating industrial applications. Featuring a compact one-in one-out design, it delivers stable flow output and exceptional pressure resistance, making it ideal for extrusion, pipeline pressurization, polyurethane foaming, PUR hot melt adhesive spraying, and other precision processes.

Technical Specifications

Parameter	Value	Unit
Model	JR-15	-
Displacement Per Revolution	15.0	cc/rev
Operating Speed	10-100	rpm
Inlet Pressure	0-1	MPa
Outlet Pressure	0.8-5.5	MPa
Metering Accuracy	±0.5%	-
Applicable Medium Viscosity	0.3-30000	mm²/s
Operating Temperature	-20ºC ~ 200ºC	ºC
Overall Length (L)	143	mm
Overall Width (W)	90	mm
Overall Height (H)	122	mm
Net Weight	Approx. 9.0	kg
Material	Pump body: Alloy steel / Stainless steel Gears: High-strength wear-resistant alloy Seal: Mechanical seal	-
Application	Staple fiber, polyester melt, glue dispensing & coating	-

Main Applications

Chemical Fiber Spinning: Suitable for melt spinning of polyester and polyamide. Stable flow rate and precise metering ensure even filament formation.
Industrial Fluid Metering: Can be used for PUR hot melt adhesive, polyurethane foaming, glue spraying, etc., to meet high-precision proportioning requirements.
High Temperature & High Pressure Conditions: Resistant to high temperature up to 320ºC and outlet pressure up to 40MPa, suitable for extreme working conditions in chemical and chemical fiber industries.

Product Advantages

High precision metering ensures stable and uniform flow output
Excellent high temperature resistance up to 320ºC and high pressure resistance up to 40MPa
Wide application in chemical fiber spinning, hot melt adhesive, polyurethane foaming and other industries
Compact structure, reliable performance and long service life
Stable operation with low noise, suitable for long-term continuous working conditions

Structural Interface Features

Multi-layer stainless steel precision gear pump structure, pressure-resistant and high temperature resistant, suitable for harsh working conditions such as chemical fiber spinning.

Interface Layout

4 × Φ11 mounting holes
Inlet / outlet size: Φ13
Central shaft connection: Φ16
External auxiliary ports: Φ10, Φ8 and other auxiliary holes

Precision Advantage

Precise control of gear meshing clearance ensures stable metering accuracy for high-viscosity fluids under high temperature and high pressure.

Why Choose Our JR Series Metering Pump?

Customization Support: We accept custom displacement, interface, and material requirements to meet special working conditions.
Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs.
Professional Service: We provide technical consultation, installation guidance, and after-sales support to ensure smooth equipment operation.
Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality.

After Sales Service

Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.

Packaging & Shipping

Standard export wooden case packaging to protect the pump from damage during transportation
Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
Complete product documents (operation manual, test report, quality certificate) are provided with each shipment

Frequently Asked Questions

Q1: What can you buy from us?

A1: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q2: What is your terms of packing?

A2: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.

Q3: How about your delivery time?

A3: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.

Q4: What's your MOQ?

A4: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q5: How do you ensure good product quality?

A5: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q6: How long your quotation valid?

A6: Our quotation valid for 1 month.

Q7: Can you accept OEM brand?

A7: Yes, we can accept the OEM brand without extra charge.

Q8: How long is your product warranty?

A8: 7 days replacement and 12 months repair free of charge for quality problem.

Q9: Can you produce according to the samples?

A9: Yes, we can produce by your samples or technical drawings.
