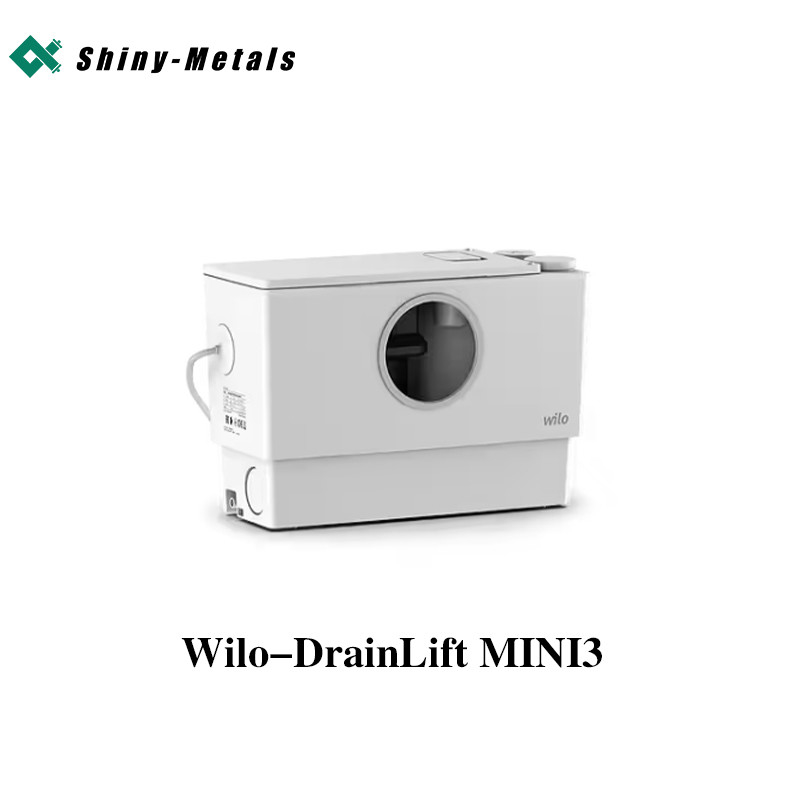

Indoor Silent Concealed Sewage Lifting Unit Pump Wilo DrainLift MINI3

• Ready-to-plug
• Level measurement via vertical float
• Vertical discharge port
• At most three inlets
• “WC” version with toilet connection
• Venting with active carbon filter
• “Silent mode” (DrainLift MINI3-XS only)
• Depth suction
•

• Mains connection: 1~230 V, 50 Hz
• Operating mode: S3 15%
• Fluid temperature: 3 to 40 °C (37 to 104 °F), max. 75 °C (167 °F) for 5 minutes
• Ambient temperature max.: 3 to 40 °C (37 to 104 °F)
• Protection class: IP68 (3 mWG/48 h)
•

Wilo-DrainLift MINI3-XXS

Compact, fully submersible lifting unit with submersible pump, ready for connection. Level measurement performed by a vertical float switch. Venting is integrated in the cover and equipped with an active carbon filter.

Up to four connections are available:

• 1x 40 mm inlet (DN 40) without non-return valve, located on top, closed ex-works.

• 2x 40/50 mm inlets (DN 40/50) with non-return valve, horizontal position on left and right side, open ex-works.

• 1x 32 mm discharge port (DN 32) with non-return valve, horizontal position on right side, open ex-works.

Wilo-DrainLift MINI3-XS

Compact, fully submersible lifting unit with submersible pump, ready for connection. Level measurement performed by a vertical float switch. Venting is integrated in the cover and equipped with an active carbon filter.

Up to four connections are available:

• 1x 40 mm inlet (DN 40) without non-return valve, located on top, closed ex-works.

• 2x 40/50 mm inlets (DN 40/50) with non-return valve, horizontal position on left and right side, open ex-works.

• 1x 32/40 mm discharge port (DN 32/40) with non-return valve, located on top, open ex-works.

Wilo-DrainLift MINI3-XS/WC

Compact, fully submersible lifting unit with submersible pump, ready for connection. The submersible pump is equipped with a rotating blade. The blade reliably shreds faeces in sewage. Level measurement performed by a vertical float switch. Venting is integrated in the cover and equipped with an active carbon filter.

Up to five connections are available:

• 1x 40 mm inlet (DN 40) without non-return valve, located on top, closed ex-works.

• 2x 40/50 mm inlets (DN 40/50) with non-return valve, horizontal position on left and right side, open ex-works.

• 1x 110 mm toilet connection (DN 110), located in front, open ex-works. If necessary, the WC connection can also be positioned horizontally on the right side. The associated opening is closed ex-works.

• 1x 32/40 mm discharge port (DN 32/40) with non-return valve, located on top, open ex-works.

Discharge port

• DrainLift MINI3-XXS:
  • 1x collar for HT pipe DN 32 (32 mm)
  • 2x 32–50 mm hose clips
• DrainLift MINI3-XS:
  • 1x collar for HT pipe DN 32/40 (32/40 mm)
  • 2x 32–50 mm hose clips

Toilet connection (WC version only)

• 1x collar for HT pipe DN 110 (110 mm)
• 1x clamp ring
• 1x 110-130 mm hose clip

Inlet connection

• 2x inlet connections DN 50 (50 mm)
• 2x collars for HT pipe DN 40/50 (40/50 mm)
• 2x non-return valve
• 2x 50–70 mm pipe clamps
• 2x 32–50 mm hose clips
• 2x sealing plug
• 6x O-rings

General

• Install floor fixation (buoyancy safeguards): 2x mounting brackets with screws and wall plugs
• Installation and operating instructions
