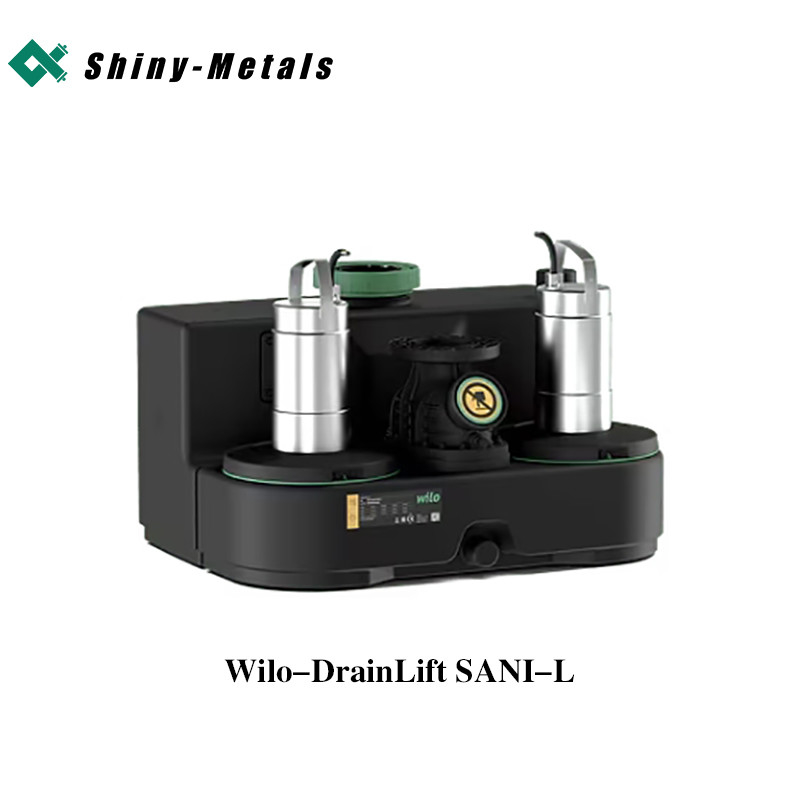

Household Compact Dual Pump Sewage Lifting Unit Wilo DrainLift SANI 12T L

Name: Household Compact Dual Pump Sewage Lifting Unit Wilo DrainLift SANI 12T L
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: DrainLift SANI-L
Price: 4,900.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: DrainLift SANI-L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                SANI 12T Sewage Lifting Unit, Compact Sewage Lifting Unit, Household drainlift sani l 12t 1


Horsepower:	1/25 HP	Maximum Pressure:	150 PSI
Dimensions:	6.5 X 4.5 X 5.5 Inches	Weight:	5.5 Pounds
Flow Rate:	10 GPM	Maximum Head:	9 Feet
Maximum Temperature:	140°F	Voltage:	120V

Horsepower:	1/25 HP
Maximum Pressure:	150 PSI
Dimensions:	6.5 X 4.5 X 5.5 Inches
Weight:	5.5 Pounds
Flow Rate:	10 GPM
Maximum Head:	9 Feet
Maximum Temperature:	140°F
Voltage:	120V

Household Compact Dual Pump Sewage Lifting Unit Wilo DrainLift SANI 12T L

Wilo DrainLift SANI-L Household Compact Dual Pump Sewage Pump

Company Info

Address: Tianjin, China

Business Type: Trading Company

Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware

Management System Certification:ISO 9001

Main Products: Water Pump Set

Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"

Product Description

Wilo DrainLift SANI-L is a compact dual pump sewage lifting device suitable for apartment buildings and commercial buildings.

Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz

Operating mode: S3 10% or S1

Fluid temperature: 3 ... 40 °C (37 ... 104 °F), max. 65 °C (149 °F) for 5 min

Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)

Tank volume: 122 l (32 US.liq.gal.)

Aplication field :Wilo DrainLift SANI-L is used for anti backflow drainage when sewage cannot be directly discharged into the sewer system through natural downhill flow or when the discharge point is below the backflow water level.

Household Compact Dual Pump Sewage Lifting Unit Wilo DrainLift SANI 12T L 1

Design

Compact, ready for connection, and fully submersible double pump lifting unit for pumping sewage containing faeces.

Application

Pumping of sewage containing faeces:

In cases where sewage cannot be discharged directly into the sewer system via a natural downward slope
For backflow resistant drainage in cases where the discharge point is below the backflow level

Equipment/function

Switchgear with mains-independent alarm and collective fault signal
Ready-to-plug
Tank with inspection opening and transparent cover
Analogue level measurement (4 … 20 mA)
Non-return valve with inspection opening
Thermal motor monitoring with bimetallic sensor

Typekey

Example:	DrainLift SANI-L.17T/4C
DrainLift	Product family
SANI	Sewage lifting unit
L	Size
17	Max. delivery head
T	Mains connection: M = 1~ T = 3~
4	Motor and switchgear version: 1 = operating mode: S3, switchgear: Control MS-L 4 = operating mode: S1, switchgear: Control EC-L
C	Version for aggressive fluids

Technical data

Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Operating mode: S3 10% or S1
Fluid temperature: 3 ... 40 °C (37 ... 104 °F), max. 65 °C (149 °F) for 5 min
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
Tank volume: 122 l (32 US.liq.gal.)
Max. usable volume in the tank according to the inlet height*: 60 l/16 US.liq.gal. (180 mm*)/76 l/20 US.liq.gal. (250 mm*)/91 l/24 US.liq.gal. (315 mm*)
Discharge port: DN 80, PN 10
Inlet connection: DN 100/150 (110/160 mm)
Ventilation connection: DN 65 (75 mm)
Protection class of switchgear: IP54
Protection class of lifting unit: IP68 (2 mWG/7 d)
Noise level: 70 dB(A)

Materials

Motor housing: 1.4404 (AISI 316L)
Hydraulics: PP-GF30
Impeller: PP-GF30 or 1.4408 (AISI 316)
Tank: PE
Non-return valve: PPS

Construction

Gas- and watertight collection tank with sloped floor at an angle and an inspection opening with transparent cover.Freely selectable inlets within the marked areas.Level measurement performed with an analogue output signal 4 ... 20 mA.Discharge port attached with a non-return valve including an inspection opening.

Surface-cooled (air) or self-cooling (sheath flow cooling) motor with thermal motor monitoring.

Pre-installed switchgears for automatic operation:

Wilo-Control MS-L

Collective fault signal with potential-free contact
Integrated and mains-independent alarm
Adjustable follow-up time
1.5 m connection cable with attached plug

Wilo-Control EC-L

Operation via display and icon-based, alphanumeric menu
Collective fault signal with potential-free contact
Individual fault signal with potential-free contact
ModBus interface
Integrated and mains-independent alarm
Adjustable follow-up time
1.5 m connection cable with attached plug

Scope of delivery

Lifting unit with switchgear and connection cable with plug
Flange connector DN 80 (90 mm)/DN 100 (110 mm)
Collar DN 100 (110 mm) for discharge connection
HT double socket DN 65 (75 mm) for ventilation connection
HT double socket DN 40 (50 mm) for drain connection
Inlet set with hole saw 124 mm (5 in) and seal DN 100 (110 mm)
Floor fixation set
Noise insulation mat
9 V rechargeable battery
Installation and operating instructions

Options

Version for aggressive fluids with ModBus connection
Version for S1 operation (continuous duty) and with ModBus connection
