DN100 submersible waste pump
, DrainLift Box submersible waste pump
, wilo drainlift box SANI CUT-L

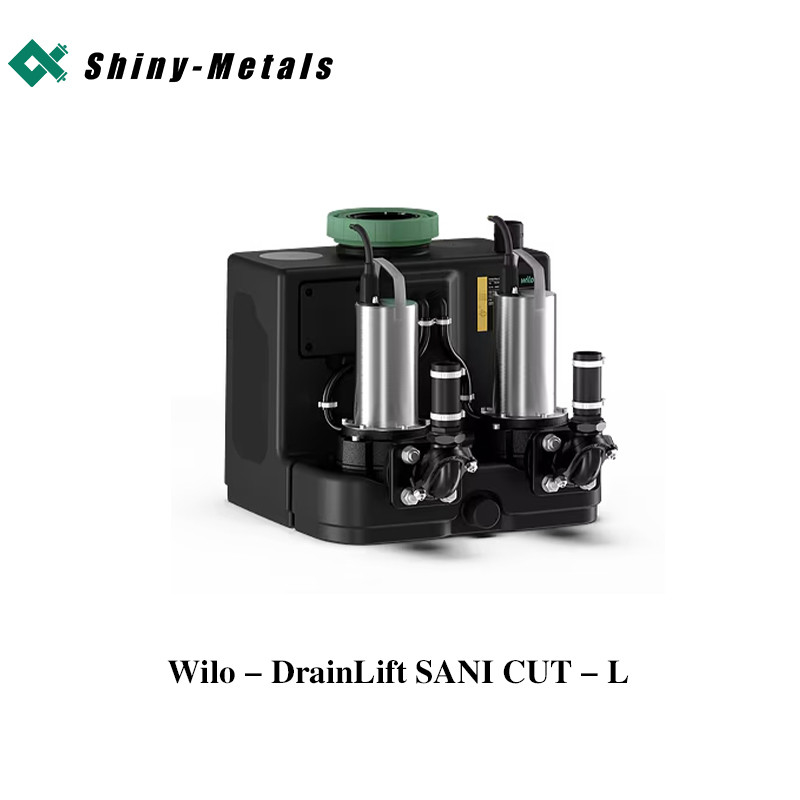

DN100 Dual Pump Sewage Pump Wilo DrainLift Box SANI CUT-L
Wilo DrainLift SANI CUT-L Dual Pump Sewage Pump for Household and Commercial Buildings
Company Info
Business Type: Trading Company
Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware
Management System Certification:ISO 9001
Main Products: Water Pump Set
Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"
Product Description
|
Wilo DrainLift SANI CUT-L is a small and lightweight dual pump sewage lifting system designed for residential and light commercial buildings.
Discharge port: DN 32
Inlet connection: DN 100/150 (110/160 mm)
Ventilation connection: DN 40 (50 mm)
Switchgear degree of protection: IP54
Noise level: 70 dB(A)
Aplication field :Wilo DrainLift SANI CUT-L is used for anti backflow drainage when sewage cannot be directly discharged into the sewer system through natural downhill flow or when the discharge point is below the backflow water level.
|
 |
Design
Compact, ready for connection, and fully submersible double pump lifting unit with macerator hydraulics for pumping sewage containing faeces.
Application
Pumping of sewage containing faeces:
Equipment/function
- Switchgear with mains-independent alarm and collective fault signal
- Ready-to-plug
- Tank with inspection opening and transparent cover
- Analogue level measurement (4 … 20 mA)
- Non-return valve
- Thermal motor monitoring with bimetallic sensor
Typekey
|
Example:
|
DrainLift SANI CUT-L.20T/1
|
|
DrainLift
|
Product family
|
|
SANI CUT
|
Sewage lifting unit with macerator
|
|
L
|
Size
|
|
20
|
Max. delivery head
|
|
T
|
Mains connection:
|
|
1
|
Motor and switchgear version:
|
Technical data
- Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
- Operating mode: S3 10%
- Fluid temperature: 3 ... 40 °C (37 ... 104 °F), max. 65 °C (149 °F) for 5 min
- Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
- Tank volume: 64 l (16 US.liq.gal.)
- Max. usable volume in the tank according to the inlet height*: 29 l/7 US.liq.gal. (180 mm*)/39 l/10 US.liq.gal. (250 mm*)/48 l/12 US.liq.gal. (315 mm*)
- Discharge port: DN 32
- Inlet connection: DN 100/150 (110/160 mm)
- Ventilation connection: DN 40 (50 mm)
- Switchgear degree of protection: IP54
- Noise level: 70 dB(A)
-
Materials
- Motor housing: 1.4404 (AISI 316L)
- Hydraulics: EN-GJL-250 (ASTM A48 Class 35/40B)
- Impeller: EN-GJL-250 (ASTM A48 Class 35/40B)
- Macerator: 1.4528/59 HRC (AISI 440B+Co)
- Tank: PE
- Non-return valve: EN-GJL-250 (ASTM A48 Class 35/40B)
-
Construction
Gas- and watertight collection tank with sloped floor at an angle and an inspection opening with transparent cover.Freely selectable inlets within the marked areas.Level measurement performed with an analogue output signal 4 ... 20 mA.Discharge port with non-return valve attached.
Surface-cooled (air) or self-cooling (sheath flow cooling) motor with thermal motor monitoring.
Pre-installed switchgear for automatic operation:
Wilo-Control MS-L
- Collective fault signal with potential-free contact
- Integrated and mains-independent alarm
- Adjustable follow-up time
- 1.5 m connection cable with attached plug
-
Scope of delivery
- Fully submersible lifting unit with macerator, switchgear, and connection cable including plug
- Pipe connection DN 32 (outer diameter 40 mm)
- HT double socket DN 40 (50 mm) for ventilation connection
- HT double socket DN 40 (50 mm) for drain connection
- Inlet set with hole saw 124 mm (5 in) and seal DN 100 (110 mm)
- Floor fixation set
- Noise insulation mat
- 9 V rechargeable battery
- Installation and operating instructions
