China Manufacturer Spiral Bevel Gear Inspection Machine

Name: China Manufacturer Spiral Bevel Gear Inspection Machine
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: YK2212B
Price: 4,900.00 USD
Availability: InStock

Product Details

Brand Name: GENERTEC

Model Number: YK2212B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 8-8 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months， Off Season Lead Time: 1-3 months

Get Best Price

Product Details

Product Description

Highlight:

Max. Workpiece Dia.:	125 Mm	Shaft Angle Between Two Spindles:	45 ~180 °
Diameter Of Taper Hole At Large End:	3#	Workholding:	Manual Release Spring Clamping
Numerical Control System:	Purely Mechanical	Module:	0.3 ~ 2.5 Mm
Loading:	Manual Loading

Max. Workpiece Dia.:	125 Mm
Shaft Angle Between Two Spindles:	45 ~180 °
Diameter Of Taper Hole At Large End:	3#
Workholding:	Manual Release Spring Clamping
Numerical Control System:	Purely Mechanical
Module:	0.3 ~ 2.5 Mm
Loading:	Manual Loading

China Manufacturer Spiral Bevel Gear Inspection Machine

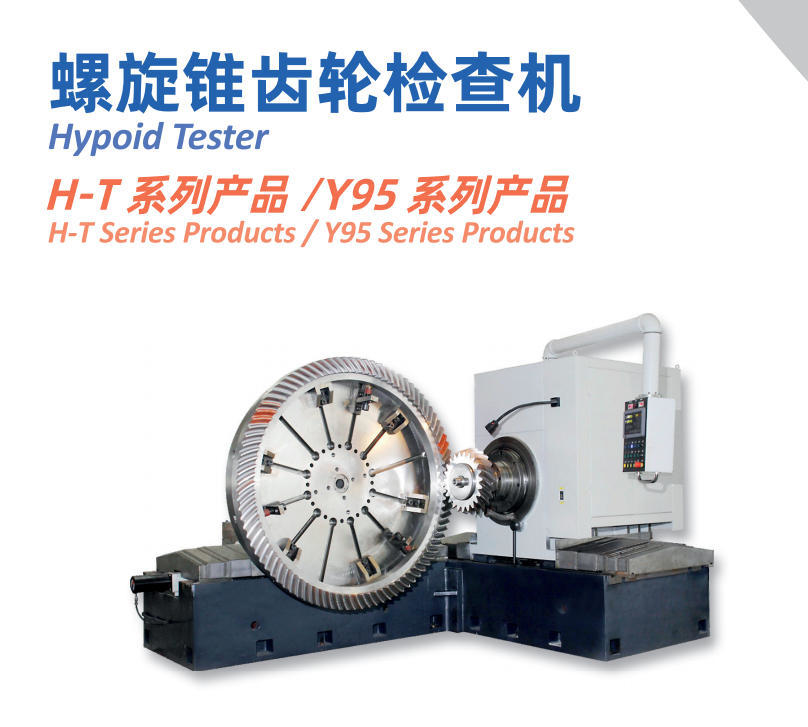

Spiral Bevel Gear Inspection Machine
Hypoid Tester

H-T Series Products / Y95 Series Products

Both the CNC type and the manual type can ensure the requirements of high-precision inspection and matching equipment. The CNC type adopts the SIEMENS CNC system.
The main shaft of the main drive box of the CNC type adopts stepless frequency conversion speed regulation.
The CNC type is equipped with a main shaft locking mechanism for checking the backlash of the bevel gear.
For the CNC type, each linear axis adopts a servo motor, a high-precision rolling guide rail and a ball screw drive.
The loading of the driven wheel of the CNC type is realized through a magnetic powder (brake). The loading torque can be adjusted as needed through the control panel.

Main Specifications
Items	Unit	Y9512	Y9550C	YKW9580A
Max. Workpiece Dia.	mm	φ 125	φ 500	φ 800
Shaft angle between two spindles	°	45 ~ 180	90	45 ~ 180
Diameter of taper hole at Large End	-	Morse 3#	φ 100	φ 150 φ 203.2
Workholding	-	Manual release Spring clamping	Hydraulic release Disc spring clamping	Hydraulic release Disc spring clamping
Numerical control system	-	Purely mechanical	Purely mechanical	Siemens 828D 2-axis CNC Semi-closed loop control
Module	mm	0.3 ~ 2.5	2.5 ~ 10	2.5 ~ 15
Loading	-	Manual loading	Manual loading	Adjustable hydraulic loading

Items	Unit	H650T	H1250T	H2000T
Max. Workpiece Dia.	mm	650	1250	2000
Shaft angle between two spindles	°	90	45 ~ 90	90
Through hole diameter of driving spindle	mm	140	270	400
Through hole diameter of driven spindle	mm	140	140	270
Driving headstock movement	mm	260	820	1150
Driven headstock movement	mm	300	1050	1550
Driving spindle rotation speed	rpm	2000	900	200
Loading torque of driven spindle	Nm	0 ~ 400	0 ~ 600	0 ~ 1000
Overall Dimensions	mm	2700×2420×3018	2990×2630×1990	3670×2850×2250
Machine Weight	kg	11000	16000	21000

Company Profile

Genertec Tianjin No.1 Machine Tool Co., Ltd. belongs to China General Technology Group, a central enterprise.

The company was formerly known as Tianiin No.1 Machine Tool Works, one of the 18 Lohans enterprises in themachine tool industry in the early days of the founding of New China, and Tianjin Jinyi Grinding Machine Co., Ltd. ithas accumulated more than 70 years of history in the gear machine tool and grinder industry, and is the backboneenterprise in China's machine tool manufacturing industry.

Why Choose Us?

The company focuses on developing extended products in the industrial chain such as gear machining machines, special grinding machines, and precision transmission devices, and provides customers with professional comprehensive solutions for gear machining. The products are sold in 30 provinces, municipalities directly under the Central Government, and autonomous regions in China, and are exported to more than 20 countries including Germany, Spain, the United States, Sweden, Brazil, Japan, and India. It is a backbone manufacturer in China for producing complete sets of machining machines for spiral bevel gears. The company has world-class high-end precision machining and testing equipment, and an experienced R & D team and a main production force, and has passed the ISO 9001 quality management system certification.

Other Products

The leading products include: 18 major categories and more than 30 series of products such as CNC gear shapers, gear milling machines, gear broaching machines, gear grinders, gear shapers, gear lapping machines, and complete sets of bevel gear machining equipment; as well as 6 series of products including horizontal-spindle rectangular-table surface grinders, horizontal-spindle rotary-table surface grinders, vertical-spindle rotary-table surface grinders, CNC form grinders, floor-type guideway grinders, and high-precision CNC grinding centers.

FAQ

Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
