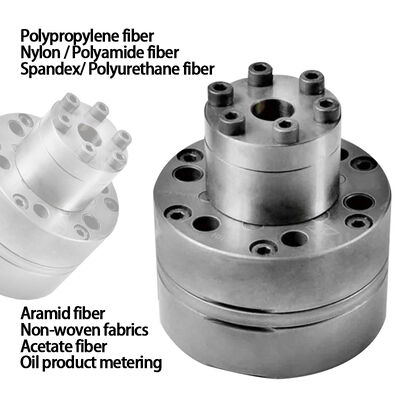

5-Outlet Gear Dosing Pump for Polypropylene/Spandex/Aramid Fiber Spinning Line

MOQ:	1
Precio:	Negociable
Embalaje Estándar:	Estuche de madera contrachapada de exportación estándar o cartón
Período De Entrega:	5-8 semanas
Método De Pago:	LC, D/A, D/P, T/T, Unión Occidental
Capacidad De Suministro:	Tiempo de entrega en temporada alta: 1-3 meses; Tiempo de entrega fuera de temporada: 1 mes

Información detallada

Descripción de producto

Información detallada

Nombre de la marca

Número de modelo

HRA-2.4

Uso principal:

Medición de hilado de filamentos de poliéster y nailon

Estructura:

1 entrada, 5 salidas

Gama de dislocación:

1,2~5,0 Cc/Rev (Salida por puerto por revolución)

Presión de trabajo:

Entrada: ≤20MPa; Salida: ≤40MPa

Temperatura de trabajo:

≤320 ℃

Viscosidad del fluido de hilatura:

≤4000 equilibrio

Velocidad de trabajo:

5~40 rpm

Tornillo de montaje:

M12 (uniforme para todos los modelos)

Desplazamiento por puerto:

2,4 cc/revolución

Desplazamiento total:

12,0 cc/revolución (2,4 × 5)

Resaltar:

5-outlet metering pump for fiber spinning

polypropylene fiber dosing pump

spandex spinning line gear pump

Descripción de producto

5-Outlet Gear Dosing Pump for Polypropylene/Spandex/Aramid Fiber Spinning Line

This series of 1-inlet 5-outlet precision spinning metering gear pumps are high-precision melt metering and conveying equipment specially developed for filament spinning processes such as polyester and nylon. With a precision gear meshing structure, it realizes uniform flow distribution from a single inlet to 5 outlets, providing stable and accurate conveying for spinning melt or oil agent. It is a core component ensuring the uniformity of spinning finished products and production continuity, and is widely suitable for high-viscosity fluid metering scenarios in chemical fiber, chemical, food, pharmaceutical and other industries.

Model	HRA-2.4
Structure	1 Inlet, 5 Outlets
Displacement per port	2.4 cc/rev
Total displacement	12.0 cc/rev (2.4 × 5)
Working pressure	Inlet ≤20 MPa; Outlet ≤40 MPa
Working temperature	≤ 320 ºC
Suitable viscosity	≤ 4000 POISE
Working speed	5-40 rpm
Dimension A (Pump body length)	68.4 mm
Dimension B (Total length with shaft)	110.4 mm
Overall dimensions (L × W × H)	110.4 × 120 × 66 mm
Mounting flange	Φ120 mm
Mounting screw	M12
Inlet/Outlet ports	Inlet 1×Φ20 mm; Outlet 5×Φ7 mm

Main Applications

Core Industries: Chemical, chemical fiber, food, biology, medicine, etc.
Core Processes: Spinning forming of polypropylene, nylon, spandex, aramid, non-woven fabric, acetate fiber, etc.
Extended Applications: Precision oil metering, high-viscosity fluid booster conveying, special material extrusion supporting, etc.

Product Advantages

Multi-channel Precision Distribution: Uniform flow at 5 outlets with minimal error, eliminating uneven spinning thickness and broken filaments.
High Pressure and Temperature Resistance: Maximum outlet pressure of 40MPa, temperature resistance up to 320ºC, suitable for high-temperature and high-pressure spinning working conditions.
Strong High-viscosity Adaptability: Can transport high-viscosity spinning melt up to 4000POISE, meeting the stringent requirements of the chemical fiber industry.
Complete Specifications: Full displacement coverage from 1.2 to 5.0cc/rev, accurately matching spinning lines with different production capacities and processes.
Standardized Installation: Unified mounting flange and screw specifications for all models, facilitating line transformation and maintenance.

Structural Interface Features

Installation Interface Specifications

Mounting Flange: Φ120mm standard spinning machine flange with 2×Φ12.5 + 3×Φ13 mounting holes
Shaft End Specification: Φ20mm standard drive shaft, compatible with universal spinning machine power interfaces
Inlet/Outlet Ports: 1×Φ20mm inlet, 5×Φ7mm outlets, meeting the oiling/metering needs of multiple filaments simultaneously

Dimension Explanation

Dimension A: Main body length of the pump, varies with displacement (larger displacement = longer body length)
Dimension B: Total length of the whole machine including shaft end (A + shaft extension length)
The flange diameter of Φ120mm is fixed for all models, only the length varies with displacement.

Model	Output per Port per Revolution (cc/rev)	Dimension A (mm, Pump Body Length)	Dimension B (mm, Total Length with Shaft)	Mounting Screw
HRA16-1.2	1.2	103.6	145.6	M10
HRA16-1.6	1.6	106.0	148.0	M10
HRA16-1.8	1.8	107.4	149.4	M10
HRA16-2.4	2.4	112.0	154.0	M10
HRA16-3.0	3.0	114.8	156.8	M10

After Sales Service

Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.

Company Profile

Packaging & Shipping

Standard export wooden case packaging to protect the pump from damage during transportation.
Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.

Frequently Asked Questions

Q1: Are you a factory?

A1: We are based in Shanghai, China, start from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!

Q2: What can you buy from us?

A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.

Q3: What is your terms of packing?

A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.

Q4: How about your delivery time?

A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.

Q5: What's your MOQ?

A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.

Q6: How do you ensure good product quality?

A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Q7: How long your quotation valid?

A7: Our quotation valid for 1 month.

Q8: Can you accept OEM brand?

A8: Yes, we can accept the OEM brand without extra charge.

Q9: How long is your product warranty?

A9: 7 days replacement and 12 months repair free of charge for quality problem.

Q10: Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings.
