High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric
  • Nom
  • Nom
  • Nom
  • Nom

High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric

MOQ: 1
Prix: Négociable
Emballage Standard: Cas de contreplaqué d'exportation standard ou carton
Période De Livraison: 5-8 semaines
Méthode De Paiement: LC, D/A, D/P, T/T, Western Union
Capacité D'approvisionnement: Temps de livraison en haute saison: 1 à 3 mois; Temps de livraison hors saison: 1 mois
Les informations détaillées
Description de produit
Les informations détaillées
Nom de marque
ZRQH
Numéro de modèle
HRB4-3.0
Utilisation principale:
Pompe doseuse à filature de polyester
Chaîne de déplacement:
0,6 ~ 3,6 Cc/Rev
Configuration du port:
1 entrée, 4 sorties
Pression de fonctionnement:
Entrée : ≤20 MPa ; Sortie : ≤40 MPa
Température de fonctionnement:
≤320℃
Viscosité du fluide de rotation:
≤4000 équilibre
Vitesse de fonctionnement:
5~40 tr/min
Spécification:
121,1 x 102 x 102 mm
Mettre en évidence:

High pressure metering pump for chemicals

,

High temperature gear pump for nonwoven fabric

,

Chemical fiber gear pump with warranty

Description de produit

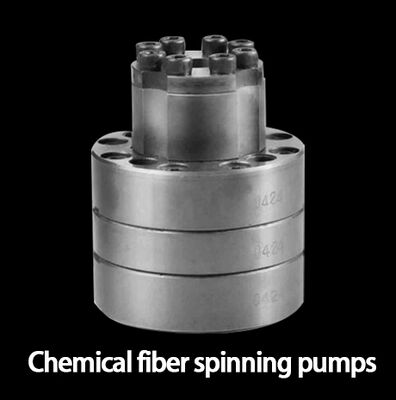

HRB4 Series Chemical Fiber Spinning Pump
The HRB4 Series Chemical Fiber Spinning Pump is a multi-outlet precision gear pump specially engineered for polyester spinning processes. It delivers stable metering of high-pressure, high-temperature, high-viscosity media with exceptional flow accuracy, serving as a core metering component in chemical fiber spinning lines.
Technical Specifications
Model HRB4-3.0
Type Spinning Metering Gear Pump
Displacement 3.0 cc/rev
Port Configuration 1 inlet 4 outlets
Max Inlet Pressure ≤20 MPa
Max Outlet Pressure ≤40 MPa
Max Temperature ≤320 ºC
Max Viscosity ≤4000 POISE
Rotation Speed 5-40 rpm
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 0
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 1
Main Applications
Suitable for industries including chemicals, synthetic fibers, food, and biotechnology. Widely used for:
  • Metering in polyester, polypropylene, nylon, spandex, aramid and other synthetic fiber spinning processes
  • Melt delivery for non-woven fabrics and acetate fiber production
  • Oil metering and quantitative delivery of high-viscosity fluids
Product Advantages
  • 1-Inlet 4-Outlet Design: A single pump supplies stable melt to 4 spinning positions simultaneously, significantly improving spinning efficiency and equipment integration
  • Wide Displacement Coverage: Multiple models from 0.6 to 3.6 cc/rev adapt to different denier and production capacity polyester spinning processes
  • High Working Condition Resistance: Resistant to temperatures up to 320ºC, high pressure differences and high-viscosity melts, meeting the high-temperature and high-pressure requirements of polyester spinning
  • High Metering Accuracy: Precision gear structure ensures stable output per revolution, guaranteeing uniform filament linear density and improving finished product quality consistency
Structural Interface Features
Model Output per Revolution (cc/rev) Dimension A (mm) Dimension B (mm) Mounting Screw Size
HRB4-0.6 0.6 58.9 106.9 M12
HRB4-1.2 1.2 61.8 109.8 M12
HRB4-1.8 1.8 64.6 112.6 M12
HRB4-2.4 2.4 67.5 115.5 M12
HRB4-3.0 3.0 70.3 118.3 M12
HRB4-3.6 3.6 73.1 121.1 M12
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 2
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 3
General dimensions: Pump body outer diameter Ø102 mm; Shaft diameter Ø22 / Ø63 mm; 4 outlets (Ø6.5) and mounting holes (2-Ø13, 2-Ø12.5) for universal compatibility with polyester spinning equipment.
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 4
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 5
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 6
High Pressure High Temp Gear Pump for Chemical Fiber & Nonwoven Fabric 7
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment
Frequently Asked Questions
What can you buy from us?
We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
How about your delivery time?
Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
What's your MOQ?
We have no MOQ demand, 1 piece for test purpose at first is acceptable.
How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
How long your quotation valid?
Our quotation valid for 1 month.
Can you accept OEM brand?
Yes, we can accept the OEM brand without extra charge.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
