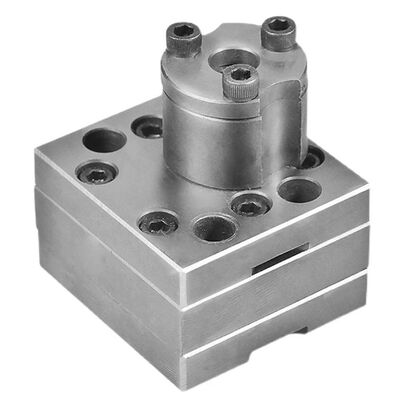

Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant
  • Name
  • Name
  • Name
  • Name

Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Plywood Case or Carton
Delivery Period: 5-8 weeks
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Detail Information
Product Description
Detail Information
Brand Name
ZRQH
Model Number
JRG-10
Form:
One Inlet & One Outlet
Displacement (Dosing Rate Per Revolution:
10cc/Rev (Per Port)
Operating Pressure:
Inlet: ≤20MPa; Outlet: ≤40MPa
Operating Temperature:
≤320℃
Viscosity Of Spinning Fluid:
≤4000 Poise
Operating Speed:
5~40 Rpm
Port Dimensions:
Inlet: φ18mm; Outlet: φ13mm
Mounting Holes:
2×φ13mm (Symmetrically Arranged)
Main Application:
Staple Fiber Spinning
Structure:
Rectangular Gear Metering Pump, Single Inlet & Sin
Material:
High-Speed Tool Steel / Wear-Resistant Alloy
Working Speed:
10-40 Rpm
Inlet Pressure:
≥ 0.5 MPa
Outlet Pressure:
≤ 40 MPa
Highlight:

staple fiber spinning metering pump

,

high temperature resistant metering pump

,

high pressure resistant spinning pump

Product Description
JRG Series (6-30cc/rev) Staple Fiber Spinning Pump
The JRG Series is a range of high-precision gear metering pumps specifically designed for the stable and accurate delivery of high-viscosity fluids. Ideal for high-temperature and high-pressure operating conditions, it is widely applied in chemical fiber, chemical engineering, and hot melt adhesive industries.
Technical Specifications
Model JRG-10
Displacement 10 cc/rev
Structure Rectangular gear metering pump, single inlet & single outlet
Material High-speed tool steel / wear-resistant alloy
Working Speed 10-40 rpm
Inlet Pressure ≥ 0.5 MPa
Outlet Pressure ≤ 40 MPa
Max Pressure Difference ≤ 40 MPa
Working Temperature ≤ 320 ºC
Cleaning Temperature ≤ 450 ºC
Metering Accuracy within ±1%
Applicable Viscosity High viscosity melt (PET, PA, PP, etc.)
Inlet & Outlet 1 inlet, 1-4 outlets
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 0
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 1
Main Applications
  • Textile Industry: Staple fiber spinning
  • Industrial Fluids: Glue dispensing, oil agent conveying, hydraulic pressure, pipeline pressurization, extruder booster delivery
  • Special Materials: Polyurethane (PU), PC foaming machine, PUR hot melt adhesive metering
  • Surface Treatment: Spraying, coating, precision glue metering
Product Advantages
  • High Precision Metering: Gear-driven technology ensures minimal flow variation, meeting the strict accuracy requirements of spinning processes.
  • Extreme Environment Adaptation: Withstands high temperatures up to 320ºC and outlet pressures up to 40 MPa, ensuring reliability in harsh industrial environments.
  • High Viscosity Capability: Efficiently handles fluids up to 4000 POISE, covering the majority of spinning melts and industrial adhesives.
  • Easy Integration & Maintenance: Universal installation dimensions facilitate easy equipment replacement and system integration.
Structural Interface Features
  • Interface Layout: Standard one-inlet, one-outlet design (Inlet: Φ18, Outlet: Φ13)
  • Mounting Standard: Shared mounting dimensions (A & B consistent across models) with M16 mounting screws
  • Material & Construction: Precision machined all-metal stainless steel structure. Features external meshing gears for superior flow stability.
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 2
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 3
Why Choose Our JR Series Metering Pump?
  • Customization Support: We accept custom displacement, interface, and material requirements to meet special working conditions.
  • Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs.
  • Professional Service: We provide technical consultation, installation guidance, and after-sales support to ensure smooth equipment operation.
  • Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality.
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 4
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 5
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 6
Jrg Series (6-30cc/rev) Staple Fiber Spinning Pump High Temp & Pressure Resistant 7
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation.
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.
Frequently Asked Questions
What can you buy from us?
We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
How about your delivery time?
Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
What's your MOQ?
We have no MOQ demand, 1 piece for test purpose at first is acceptable.
How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
How long your quotation valid?
Our quotation valid for 1 month.
Can you accept OEM brand?
Yes, we can accept the OEM brand without extra charge.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
