High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering
  • Name
  • Name
  • Name
  • Name

High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Plywood Case or Carton
Delivery Period: 5-8 weeks
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Detail Information
Product Description
Detail Information
Brand Name
ZRQH
Model Number
JRG-1.2*4-B
Displacement Per Outlet:
1.2 Cc/R × 4 Outlets
Structure:
1 Inlet, 4 Outlets
Mounting Screw:
M10
Max Inlet Pressure:
≥0.5 MPa
Max Outlet Pressure:
≤40 MPa
Max Working Temperature:
≤330℃
Allowable Viscosity:
≤400 PA·S
Working Speed:
10~50 Rpm
Highlight:

high viscosity metering pump

,

resistant spinning gear pump

,

viscose melt metering pump

Product Description

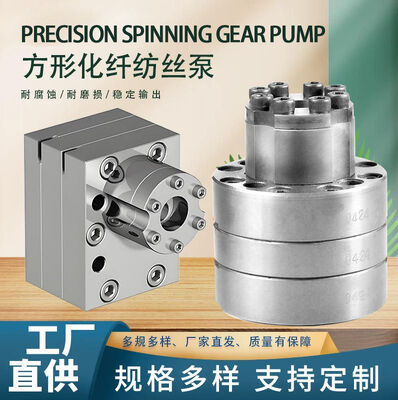

High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering
This Precision Spinning Gear Pump is a high-precision metering gear pump specially designed for chemical fiber spinning applications. It features a 1-inlet, 4-outlet structure, adapting to harsh conditions of high pressure, high temperature, and high-viscosity melt conveying. It is widely used in spinning and metering processes across multiple industries.
Technical Specifications
Model JRG-1.2×4-B
Displacement per outlet 1.2 cc/r × 4 outlets
Structure 1 inlet, 4 outlets
Mounting Screw M10
Max Inlet Pressure ≥0.5 MPa
Max Outlet Pressure ≤40 MPa
Max Working Temperature ≤330ºC
Allowable Viscosity ≤400 Pa*s
Working Speed 10~50 rpm
Overall Length 118.5 mm
Width / Height 95 mm
High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering 0
High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering 1
Main Applications
Industries: Chemical, chemical fiber, food, biological, pharmaceutical, etc.
Applications: Spinning of polypropylene fiber, nylon, spandex, aramid, non-woven fabric, acetate fiber, and oil metering.
Core Use: Spinning of polyester and nylon filament.
Product Advantages
  • High-Efficiency Multi-Position Feeding: The 1-inlet & 4-outlet design allows one pump to supply multiple spinning positions simultaneously, simplifying equipment layout and reducing per-position costs.
  • Stable Metering Accuracy: The gear structure ensures precise and controllable melt flow, improving the consistency of finished yarn quality.
  • Harsh Condition Adaptability: It can handle high-temperature, high-pressure, and high-viscosity media, meeting the conveying requirements of chemical fiber spinning melts.
  • Complete Model Range: Covers a full displacement range of 1.2~6.5 cc/r, meeting the flow requirements of different spinning equipment.
Structural Interface Features
The pump body is a cylindrical structure with a uniform outer diameter of φ102mm. The flange mounting holes are 2-Ø13 / 2-Ø12.5, fitting well into standard installation spaces of spinning equipment.

The 1-inlet & 4-outlet flow path design enables uniform feeding for 4 spinning positions at the same time, significantly improving spinning efficiency and yarn uniformity.

All models use M12 mounting screws, ensuring high adaptability for easy equipment integration and maintenance.
High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering 2
High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering 3
High Viscosity 4000poise Resistant Spinning Gear Pump for Viscose Melt Metering 4
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation.
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.
Frequently Asked Questions
Q1: Are you a factory?
A1: We are based in Shanghai, China, start from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!
Q2: What can you buy from us?
A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3: What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q4: How about your delivery time?
A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
Q5: What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6: How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7: How long your quotation valid?
A7: Our quotation valid for 1 month.
Q8: Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9: How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings.
