15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Export Plywood Case or Carton
Delivery Period: 5-8 weeks
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Detail Information
Product Description
Detail Information
Brand Name
ZRQH
Model Number
HRF-6.0
Main Use:
Coating & Glue Transfer Pump
Structure Form:
1 Inlet & 1 Outlet
Displacement Range:
3.6~10cc/R (Displacement Per Revolution)
Working Pressure:
Inlet: Normal Pressure; Outlet ≤15MPa
Working Temperature:
≤120℃
Applicable Medium Viscosity:
≤10000poise
Applicable Speed Range:
15~100rpm
Highlight:

15MPa high pressure metering pump

,

high viscosity paint spraying pump

,

adhesive gear metering pump

Product Description

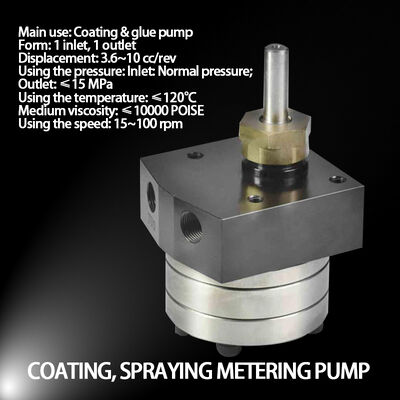

15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying
The Coating & Spraying Metering Pump is a high-precision quantitative delivery pump, specially engineered for coating and spraying applications. It ensures stable and accurate delivery of high-viscosity fluids including glue, paint, and oil agents. Serving as the core precision component for coating production lines, dispensing equipment, and hot melt adhesive systems, this pump is suitable for diverse industrial fluid delivery scenarios.
Technical Specifications
ParameterSpecification
ModelHRF-6.0
Displacement per revolution6.0 cc/rev
Structure1 inlet, 1 outlet
Working Speed15-100 rpm
Working PressureInlet: Normal pressure; Outlet ≤ 15 MPa
Working Temperature≤ 120 ºC
Suitable Viscosity≤ 10000 POISE
Mounting ScrewM8
Dimension A (Pump Body Length)48.2 mm
Dimension B (Total Length with Shaft)148.2 mm
Overall Dimensions (L×W×H)148.2 × 86 × 54.45 mm
15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying 0
15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying 1
Main Applications
  • Coating, spraying, and dispensing systems
  • Oil delivery and hydraulic systems
  • Pipeline pressurization and booster conveying
  • Extruder supporting applications
  • Polyurethane foaming and PC foaming machines
  • PUR hot melt adhesive systems
  • Glue quantitative metering processes
Product Advantages
High Metering Accuracy
Precision gear meshing structure ensures stable flow with minimal error, guaranteeing consistent coating and spraying process quality.
High-Viscosity Adaptability
Handles up to 10,000 POISE high-viscosity paints and glues, meeting stringent coating industry working conditions.
Multi-Scenario Universal
Versatile applications including polyurethane foaming, hot melt adhesive, dispensing, and oil delivery across various industrial scenarios.
Complete Specifications
Full displacement coverage from 3.6~10cc/r for precise selection according to different production line capacities.
Standardized Installation
Unified mounting flange and screw specifications across all models facilitate standardized production line transformation and maintenance.
Structural Interface Features
  • Main Body Mounting Flange: 86×90mm
  • Shaft End Specification: Φ12.7mm, Shaft Extension Height 54.45mm
  • Inlet & Outlet Diameter: Φ86mm, compatible with standard coating pipelines
15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying 2
15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying 3
Why Choose Our JR Series Metering Pump?
Customization Support
We accept custom displacement, interface, and material requirements to meet special working conditions.
Quality Assurance
Strict factory testing ensures stable performance and long service life, reducing maintenance costs.
Professional Service
Comprehensive technical consultation, installation guidance, and after-sales support to ensure smooth equipment operation.
Cost-Effective
High-precision metering reduces material waste, improving production efficiency and product quality.
15MPa High Pressure Gear Metering Pump for High Viscosity Paint & Adhesive Spraying 4
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) provided with each shipment
Frequently Asked Questions
What can you buy from us?
We provide one-stop flow meter services, including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and related instruments.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing available.
How about your delivery time?
Standard type: 6-7 working days after order confirmation. Non-standard type: 8-10 working days after order confirmation.
What's your MOQ?
No MOQ requirement - 1 piece for test purposes is acceptable.
How do you ensure good product quality?
Complete quality control system with full inspection by IQC and OQC departments before shipment.
How long is your quotation valid?
Our quotations are valid for 1 month.
Can you accept OEM brand?
Yes, we accept OEM branding without extra charges.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problems.
Can you produce according to the samples?
Yes, we can produce according to your samples or technical drawings.
